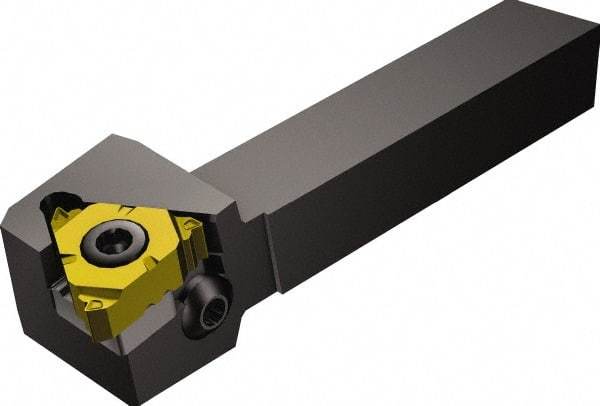

Sandvik Coromant - External Thread, Right Hand Cut, 1/2" Shank Width x 1/2" Shank Height Indexable Threading Toolholder - 5" OAL, 266RG-16 Insert Compatibility, 266RFA Toolholder, Series CoroThread 266
Item #: 82548421
Brand: Sandvik Coromant
Model #: 5757845
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Height (Inch) | 1/2 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Insert Compatibility | 266RG-16 |
| Series | CoroThread 266 |
| Toolholder Style | 266RFA |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Inch) | 5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Center to Cutting Edge (mm) | 12.70 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Shank Length (Inch) | 5 |
| Shank Length (Decimal Inch) | 5.0000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
