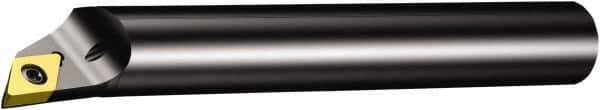

Sandvik Coromant - 20mm Min Bore Diam, 125mm OAL, 5/8" Shank Diam, A-SDXC Indexable Boring Bar - DCMT 21.51 Insert, Screw Clamping Holding Method
Item #: 82494683
Brand: Sandvik Coromant
Model #: 5721580
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDXC |
| Series | CoroTurn 107 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.7874 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.7874 |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | DCMT 21.51 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Boring; Profiling |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Positive |
| Neck Diameter (Decimal Inch) | 0.6250 |
| Lead Angle | 3 |
| Neck Diameter (Inch) | 5/8 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 3 |
| Complete Insert Compatibility | DCMT 21.51 |
| Toolholder Material | Steel |
| Number of Inserts Included in Order | 0 |
