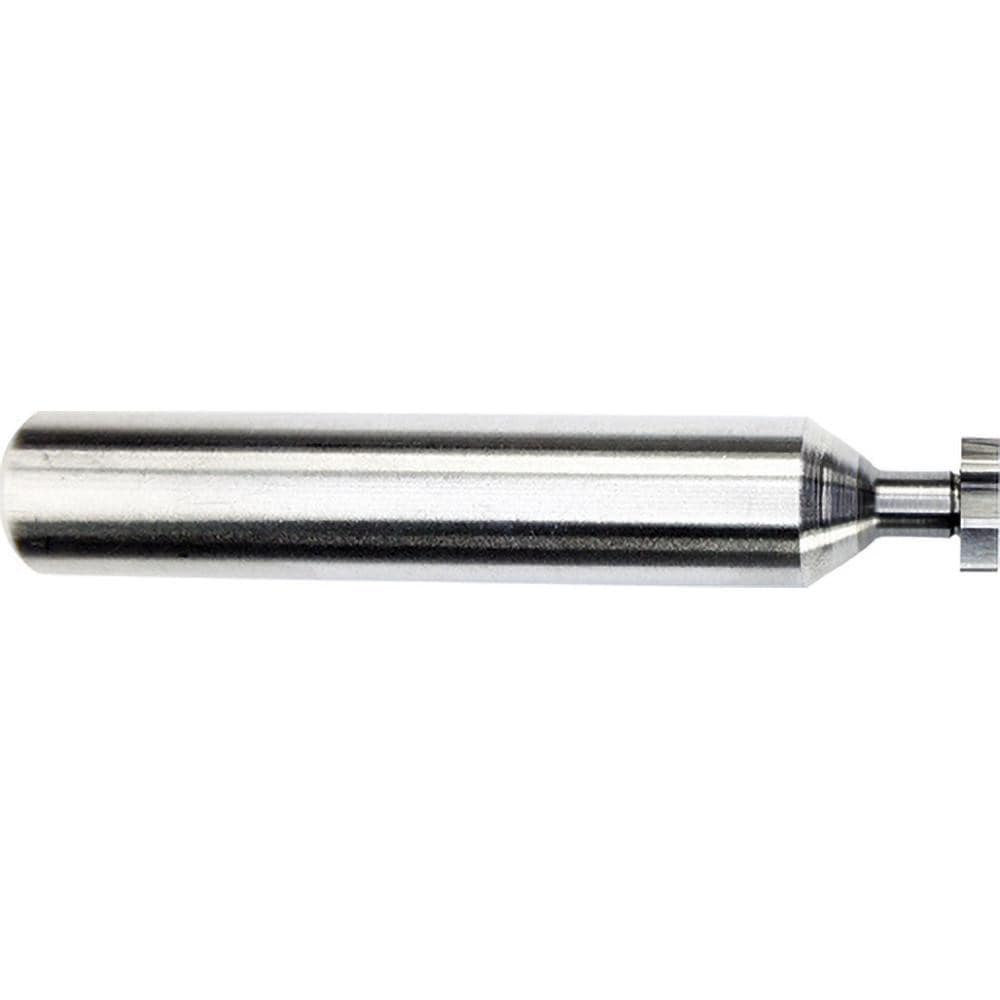

Woodruff Keyseat Cutter: 38.00 mm Cut Dia, 5.00 mm Cut Width, 12.70 mm Shank Dia, Straight Tooth
Item #: 63580088
Brand: Internal Tool
Model #: 79-2015
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (mm) | 38.00 |
| Tooth Configuration | Straight |
| Cutting Width (mm) | 5.00 |
| Weldon Flat | No |
| Neck Diameter (mm) | 12.00 |
| Neck Length (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 12.70 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (mm) | 76.50 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutter Material Grade | Micrograin |
| Series | 79 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 16 |
| UNSPSC Code | 23241631 |
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (mm) | 38.00 |
| Tooth Configuration | Straight |
| Cutting Width (mm) | 5.00 |
| Weldon Flat | No |
| Neck Diameter (mm) | 12.00 |
| Neck Length (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 12.70 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (mm) | 76.50 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutter Material Grade | Micrograin |
| Series | 79 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 16 |
| UNSPSC Code | 23241631 |
| MSC Part # | 63580088 |
| Mfr Part # | 79-2015 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
