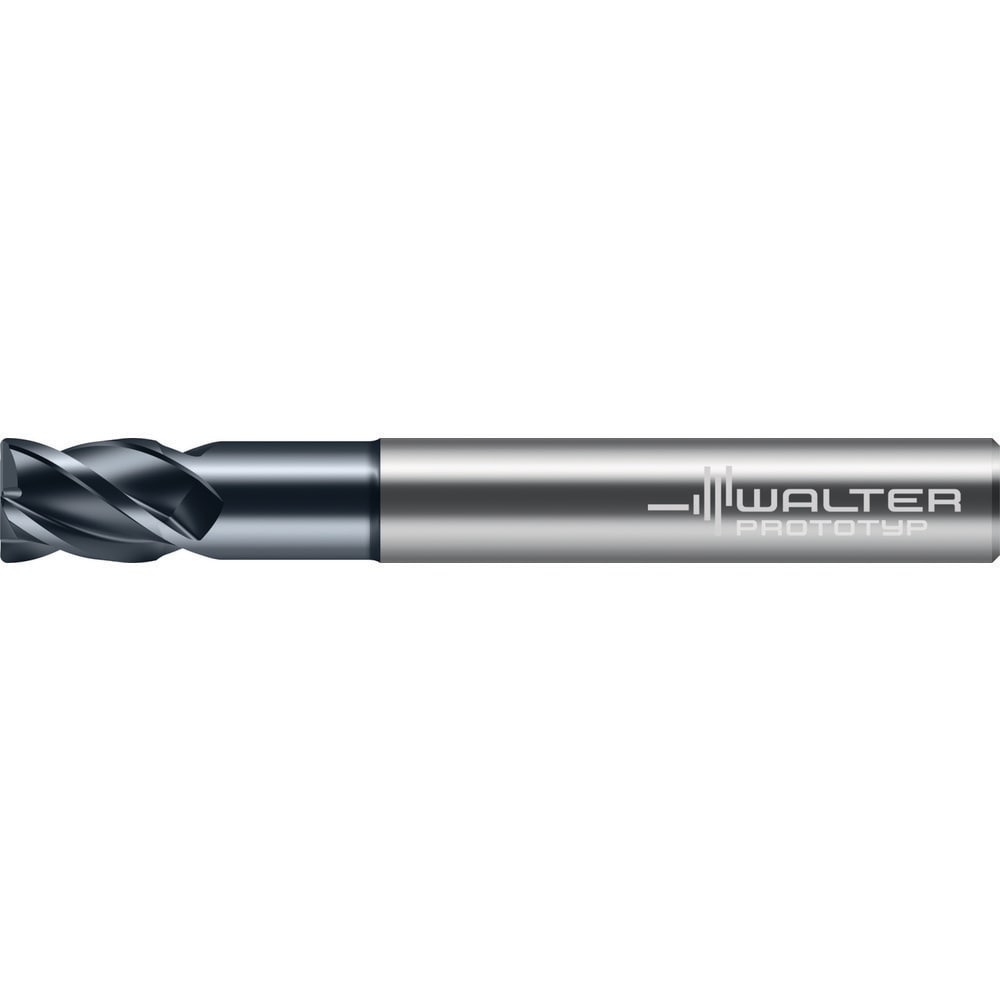

Corner Radius End Mill: 3/4" Dia, 1" LOC, 0.0600" Radius, 4 Flute, Solid Carbide

Corner Radius End Mill: 3/4" Dia, 1" LOC, 0.0600" Radius, 4 Flute, Solid Carbide


Item #: 07624661
Brand: Walter-Prototyp
Model #: 8417564

Product Specifications

Mill Diameter (Inch) 3/4
Number Of Flutes 4
Length of Cut (Inch) 1
Single Or Double End Single
End Mill Material Solid Carbide
Coating/Finish nACo
Overall Length (Inch) 7
Centercutting Yes
Flute Direction Right Hand
Corner Radius (Decimal Inch) 0.0600
Cutting Direction Right Hand
Coolant Through No
Chipbreaker No
Extended Reach Yes
Shank Type Straight-Cylindrical
Material Removal Type Roughing & Finishing
Shank Diameter (Inch) 3/4
Reach Length (Decimal Inch) 5.3071
Shank Diameter Tolerance h6
Primary Workpiece Material Superalloys & Titanium
UNSPSC Code 27112803
Primary Workpiece Material Code S
Secondary Workpiece Material Stainless Steel; Steel
Secondary Workpiece Material Code P; M
Series MA377.A-4-R-C
Proprietary Coating Designation WJ30EM
Manufacturers Catalog Number MA377.19.1A4X152G-WJ30EM
$390.70
