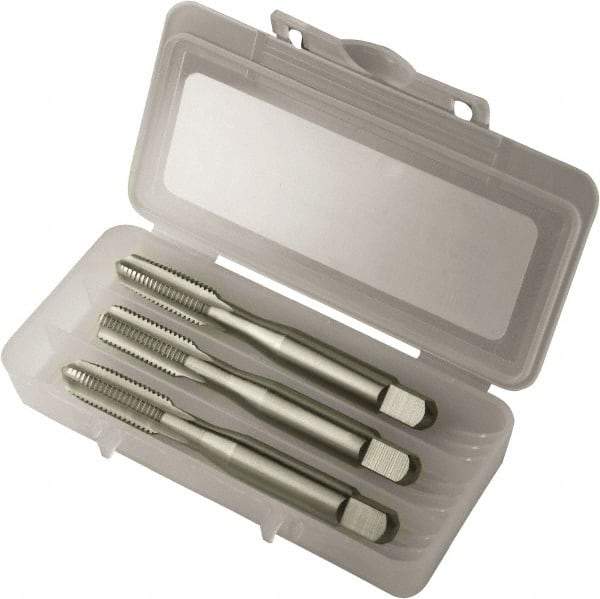

Vermont Tap & Die - M8x1.25 Metric, 4 Flute, Bottoming, Plug & Taper, Bright Finish, High Speed Steel Tap Set - Right Hand Cut, 2-23/32" OAL, 1-1/8" Thread Length, 6H Class of Fit, Series 3105M
Item #: 81330870
Brand: Vermont Tap & Die
Model #: 174524
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Product Specifications | |
---|---|
Thread Size | M8x1.25 |
Number of Flutes | 4 |
Chamfer | Bottoming; Plug; Taper |
Material | High Speed Steel |
Finish/Coating | Bright |
Thread Direction | Right Hand |
Class of Fit | 6H |
Thread Limit | D5 |
Thread Length (Decimal Inch) | 0.6900 |
Thread Length (Inch) | 1-1/8 |
Overall Length (Decimal Inch) | 2.7188 |
Overall Length (Inch) | 2-23/32 |
Overall Length (mm) | 69.06 |
Thread Standard | Metric |
Series/List | 3105M |
Number of Pieces | 3 |
