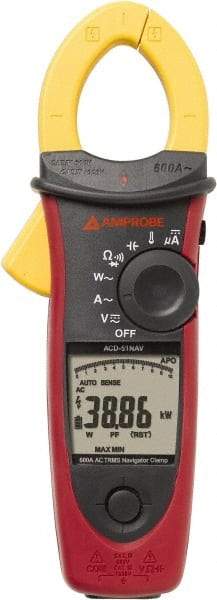

Amprobe - 3729950, CAT IV, CAT III, Digital True RMS Clamp Meter with 1.4567" Clamp On Jaws - 999.9 VAC/VDC, 599.9 AC Amps, Measures Voltage, Capacitance, Current, microAmps, Temperature
Item #: 81088452
Brand: Amprobe
Model #: 3729950
Exact Tooling IR#: 04
Features and Benefits
Clamp on meters are designed with jaws that open and close to fit around a conductor to measure AC or DC currents.
| Product Specifications | |
|---|---|
| Measures | Voltage; Capacitance; Current; microAmps; Temperature |
| Jaw Style | Clamp On |
| Jaw Capacity (Decimal Inch) | 1.4567 |
| CAT Rating | CAT IV; CAT III |
| Maximum DC Voltage | 1000 |
| Maximum AC Voltage | 1000 |
| Maximum AC Current (A) | 600 |
| Maximum Resistance (Ohms) | 99999 |
| Temp Measurement Range (C) | -50 - 1000 |
| Temp Measurement Range (F) | -58 - 1832 |
| Temp Measurement Range w/Included Probe (F) | -40 - 500 |
| Temp Measurement Range w/Included Probe (C) | -40 - 260 |
| Maxium Capacitance (mF) | 3.999 |
| Display Type | Digital |
| AC Wave Measurement | True RMS |
| Additional Functions | Phase Rotation; NCV; Inrush; Low Pass Filter; THD; Active Power; PF |
| Includes | Test Leads; Case; Manual; Temp Adapter; Thermocouple |
| Frequency | 9.999kHz |
| Counts | 4000 |
| Battery Type | 9V |
| Standards Met | IEC61010; IEC61326 |
| PSC Code | 6625 |
