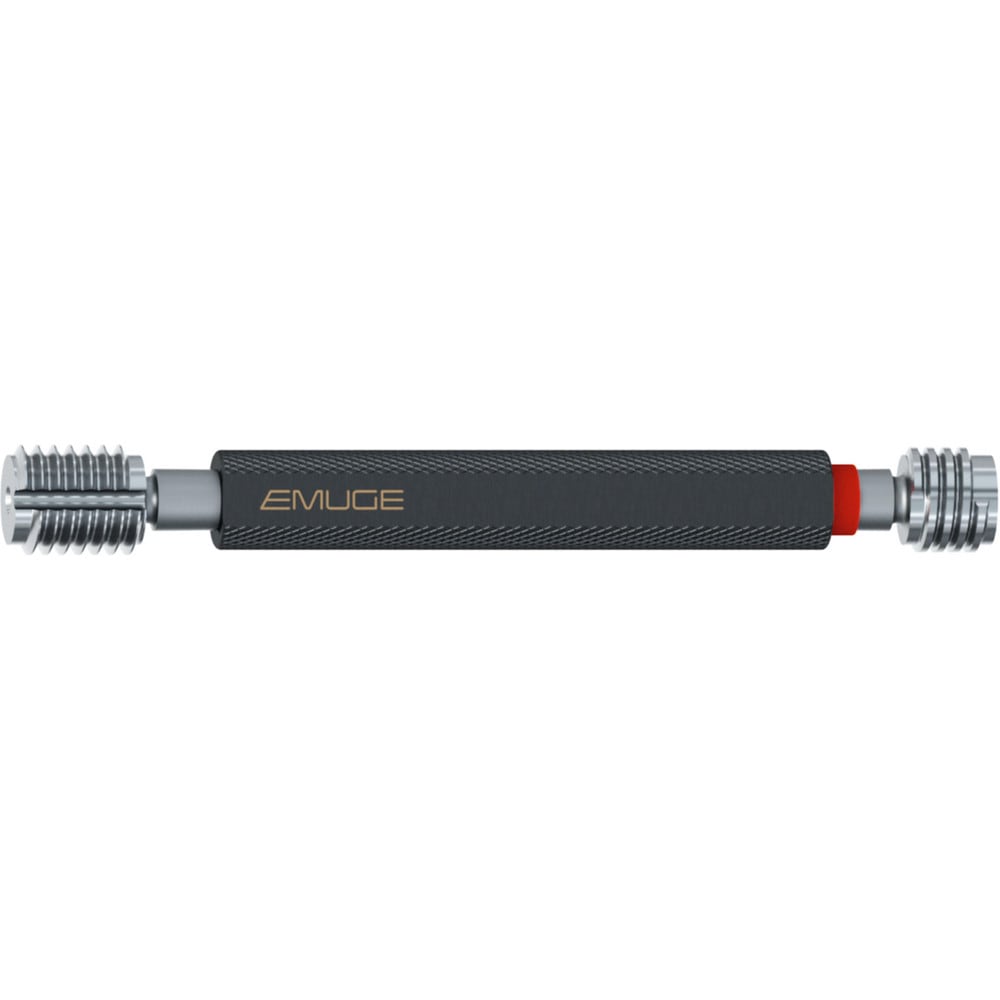

Plug Thread Go/No Go Gages; Go/No Go: Go, No Go; Thread Size: #10-24; Material: Steel; Classification: 3B; Go Pitch Diameter (Inch): 0.1629; Go Pitch Diameter (mm): 4.1380; No Go Pitch Diameter (mm): 4.2190; No Go Pitch Diameter (Decimal Inch): 0.16610
Item #: 02812964
Brand: Emuge
Model #: L0100160.5007
Product Specifications
| Go/No Go | Go; No Go |
| Thread Size | #10-24 |
| Material | Steel |
| Classification | 3B |
| Go Pitch Diameter (Inch) | 0.1629 |
| Go Pitch Diameter (mm) | 4.1380 |
| No Go Pitch Diameter (mm) | 4.2190 |
| No Go Pitch Diameter (Decimal Inch) | 0.16610 |
| Handle Size | 0 |
| Handle Included | Yes |
| Overall Length (Decimal Inch) | 2.8540 |
| Overall Length (mm) | 72.5000 |
| Thread Direction | Left Hand |
| Calibrated | Yes |
| Traceability Certification Included | Yes |
| Standards | NIST; DIN2280; Gauge dimensions according to ANSI/ASME B1.5 |
| Coating/Finish | Bright |
| Single Or Double End | Double |
| Thread Standard | UNC |
| UNSPSC Code | 41111619 |
