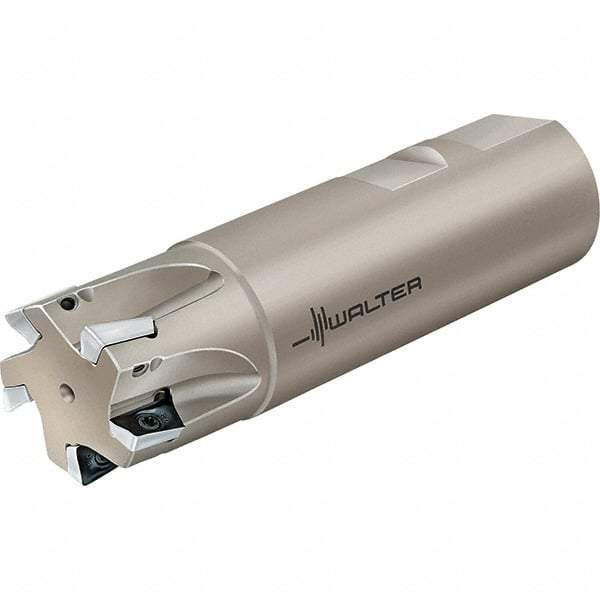

Walter - 5/8" Cut Diam, 0.394" Max Depth of Cut, 5/8" Shank Diam, 7" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Xtra-tec
Item #: 80445554
Brand: Walter
Model #: 5530100
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Cutting Diameter (Decimal Inch) | 0.6250 |
Cutting Diameter (Inch) | 5/8 |
Shank Type | Cylindrical |
Shank Diameter (Inch) | 5/8 |
Shank Diameter (Decimal Inch) | 0.6250 |
Overall Length/Projection (Decimal Inch) | 7.0000 |
Lead Angle | 90 |
Series | Xtra-tec |
Through Coolant | Coolant Through |
Maximum Depth of Cut (Decimal Inch) | 0.3940 |
Number of Cutter Inserts | 2 |
Insert Holding Method | Screw |
End Mill Type | End Mill |
Cutter Style | F4042R |
Number of Flutes | 2 |
Head Length (Decimal Inch) | 1.0240 |
Weldon Flat | No |
Insert Compatibility | ADGT 10T316R-D67; ADGT 10T316R-G77; ADGT 10T325R-D67; ADGT 10T325R-G77; ADGT 10T330R-D67; ADGT 10T330R-G77; ADGT 10T332R-D67; ADGT 10T332R-G77; ADGT 10T3PER-D67; ADGT 10T3PER-G77; ADHT 10T3PER-G88; ADKT10T3PER-F56; ADMT 10T308R-F56; ADMT 10T308R-G56; ADMT |
Shank Length (Decimal Inch) | 5.9760 |
