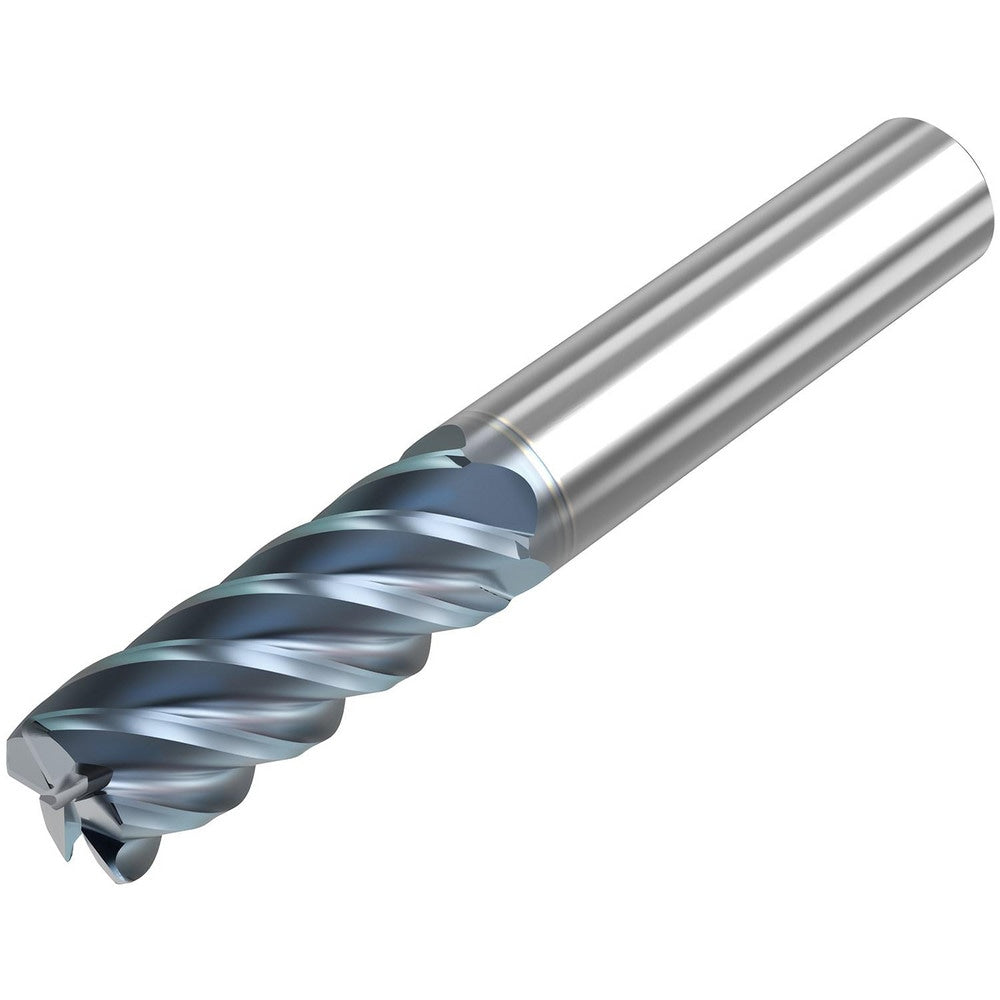

Brand: Niagara Cutter / Part #: 10115698
Item #: 98786981
Brand: Niagara Cutter
Model #: 10115698
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Corner Radius (Inch) | 1/16 |
| Coating/Finish | HTA |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Length of Cut (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Material Removal Type | Finishing |
| Shank Diameter (Inch) | 1/4 |
| Minimum Helix Angle | 45 |
| Maximum Helix Angle | 45 |
| Mill Diameter Tolerance | -0.0020/+0.0000 |
| Primary Workpiece Material Code | P; S; M |
| Series | S545R |
| TIR Maximum (Decimal Inch) | 0.0005 |
| Coating Classification | PVD |
| Helix Style | High |
