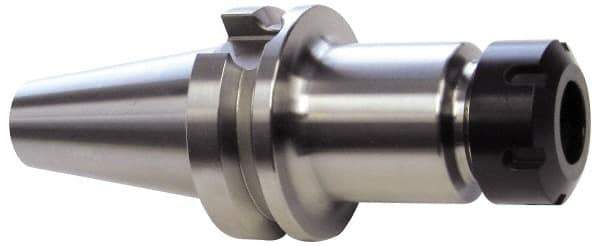

Accupro - 0.02" to 13/32" Capacity, 2.36" Projection, BT30 Taper Shank, ER16 Collet Chuck - 0.0002" TIR, Through-Spindle
Item #: 80265622
Brand: Accupro
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Collet System | ER |
Collet Series | ER16 |
Shank Type | Taper Shank |
Taper Size | BT30 |
Projection (Decimal Inch) | 2.3600 |
Through Coolant | Yes |
Minimum Collet Capacity (Decimal Inch) | 0.0200 |
Maximum Collet Capacity (Decimal Inch) | 0.4060 |
PSC Code | 5136 |
Balanced to (RPM) | 20000 |
TIR (Decimal Inch) | 0.0002 |
Coolant Type | Through-Spindle |
Collet Nut Diameter (Decimal Inch) | 1.2600 |
