![Accupro - 0.118" to 1.023" Capacity, 2-1/2" Projection, CAT40 Taper Shank, ER40 Collet Chuck - 0.0002" TIR, Through-Spindle & DIN Flange Coolant - Exact Industrial Supply](http://exactindustrialsupply.com/cdn/shop/products/8026538-24_1024x1024.jpg?v=1586523072)

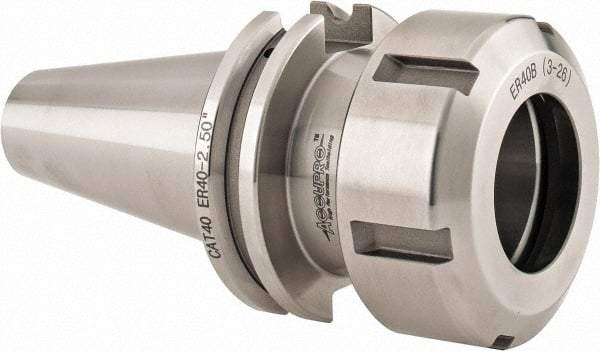

Accupro - 0.118" to 1.023" Capacity, 2-1/2" Projection, CAT40 Taper Shank, ER40 Collet Chuck - 0.0002" TIR, Through-Spindle & DIN Flange Coolant
Item #: 80265382
Brand: Accupro
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Collet System | ER |
Collet Series | ER40 |
Shank Type | Taper Shank |
Taper Size | CAT40 |
Projection (Decimal Inch) | 2.5000 |
Through Coolant | Yes |
Minimum Collet Capacity (Decimal Inch) | 0.1180 |
Maximum Collet Capacity (Decimal Inch) | 1.0230 |
PSC Code | 5136 |
Balanced to (RPM) | 30000 |
TIR (Decimal Inch) | 0.0002 |
Coolant Type | Through-Spindle & DIN Flange |
Collet Nut Diameter (Decimal Inch) | 2.4800 |
