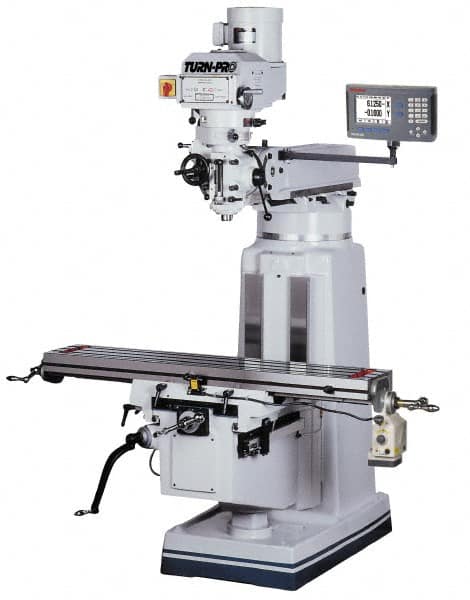

Knee Milling Machine: 3 hp, Variable Speed Pulley Control, 3 Phase 70 to 4,200 RPM, R8 Spindle Taper
Item #: 80152101
Brand: Value Collection
Model #: 6509764/7549442
Product Specifications
| Maximum Spindle to Table Distance (Inch) | 20.0000 |
| Maximum Spindle to Table Distance (Decimal Inch) | 20.0000 |
| Minimum Spindle Speed | 70 RPM |
| Maximum Spindle Speed | 4200 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90.0 ? |
| Right-Hand Head Tilt (Degrees) | 90 |
| Right-hand Head Tilt | 90.0 ? |
| Cross Travel (Decimal Inch) | 16.5000 |
| Cross Travel | 16.5 in |
| Longitudinal Travel | 39.0 in |
| Longitudinal Travel (Decimal Inch) | 39.0000 |
| Knee Travel (Decimal Inch) | 17.7500 |
| Knee Travel | 17.75 in |
| Quill Diameter (Inch) | 3-3/8 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Horsepower | 3.00 |
| Voltage | 220; 440 |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 10 |
| Ram Travel Length (Decimal Inch) | 18.0000 |
| Ram Travel Length (Inch) | 18 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Number Of T-slots | 3 |
| Overall Height (Decimal Inch) | 88.0000 |
| Overall Height (Inch) | 88 |
| Overall Length (Inch) | 66 |
| Overall Length (Decimal Inch) | 66.0000 |
| Overall Depth (Inch) | 72 |
| Overall Depth (Inch) | 72.0000 |
| Includes | X-Axis Power Table Feed |
 | |
| MSC Part # | 80152101 |
| Mfr Part # | 6509764/7549442 |
| Country of OriginCountry of Origin is subject to change | Taiwan |
