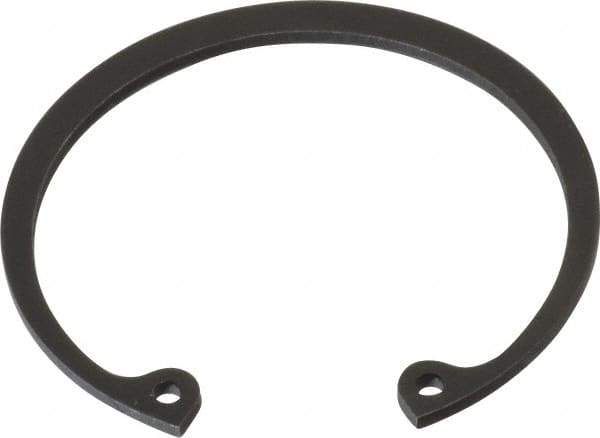

Value Collection - 2-1/8" Nominal, 0.078" Thick, Phosphate Finish, Spring Steel Snap Internal Retaining Ring - 0.086" Groove Width, 0.063" Groove Depth, 2.251" Groove Diam
Item #: 80122435
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Spring Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 2-1/8 |
| Nominal Size (Inch) | 2-1/8 |
| Groove Diameter (Decimal Inch) | 2.2510 |
| Groove Width (Decimal Inch) | 0.0860 |
| Free Outside Diameter (Decimal Inch) | 2.3500 |
| Ring Thickness (Decimal Inch) | 0.0780 |
| Finish/Coating | Phosphate |
| Groove Depth (Decimal Inch) | 0.0630 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0060 to 0.0060 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.005 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.030 to 0.040 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
