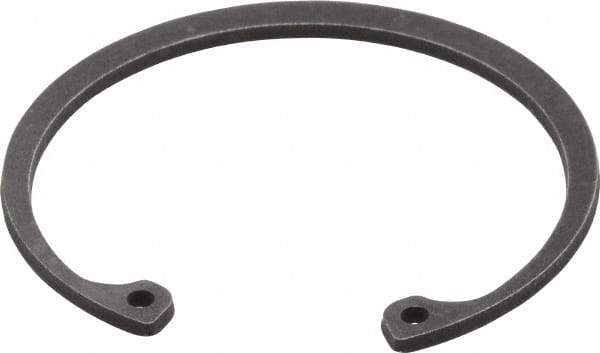

Value Collection - 2-1/16" Nominal, 0.078" Thick, Phosphate Finish, Spring Steel Snap Internal Retaining Ring - 0.086" Groove Width, 0.062" Groove Depth, 2.186" Groove Diam
Item #: 80122427
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Spring Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 2-1/16 |
| Nominal Size (Inch) | 2-1/16 |
| Groove Diameter (Decimal Inch) | 2.1860 |
| Groove Width (Decimal Inch) | 0.0860 |
| Free Outside Diameter (Decimal Inch) | 2.2800 |
| Ring Thickness (Decimal Inch) | 0.0780 |
| Finish/Coating | Phosphate |
| Groove Depth (Decimal Inch) | 0.0620 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0060 to 0.0060 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.005 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.030 to 0.040 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
