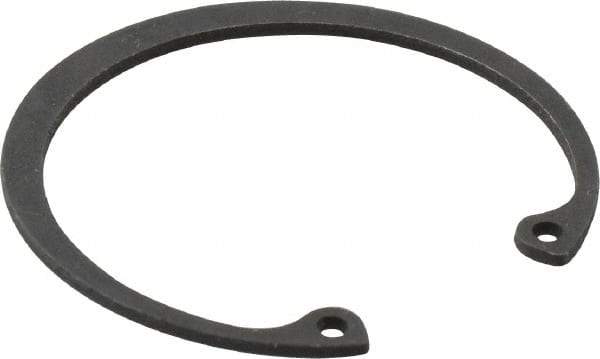

Value Collection - 1-7/16" Nominal, 0.05" Thick, Phosphate Finish, Spring Steel Snap Internal Retaining Ring - 0.056" Groove Width, 0.045" Groove Depth, 1.528" Groove Diam
Item #: 80122310
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Spring Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-7/16 |
| Nominal Size (Inch) | 1-7/16 |
| Groove Diameter (Decimal Inch) | 1.5280 |
| Groove Width (Decimal Inch) | 0.0560 |
| Free Outside Diameter (Decimal Inch) | 1.5960 |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Finish/Coating | Phosphate |
| Groove Depth (Decimal Inch) | 0.0450 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.020 to 0.025 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
