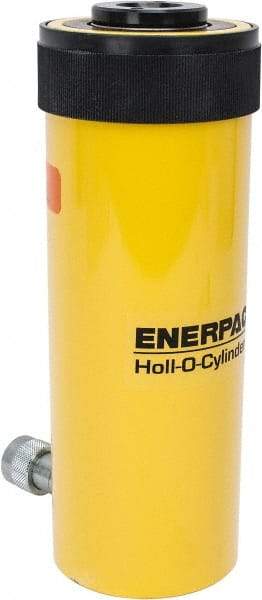

Enerpac - 30 Ton, 6.13" Stroke, 44.23 Cu In Oil Capacity, Portable Hydraulic Hollow Hole Cylinder - 7.22 Sq In Effective Area, 13" Lowered Ht., 19.13" Max Ht., 3.5" Cyl Bore Diam, 2.5" Plunger Rod Diam, 10,000 Max psi
Item #: 80016629
Brand: Enerpac
Model #: RCH306
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hollow Hole |
| Load Capacity (Ton) | 30 |
| Piston Stroke (Decimal Inch) | 6.13 |
| Cylinder Bore Diameter (Decimal Inch) | 3.50 |
| Lowered Height | 13.00 |
| Oil Capacity | 44.23 |
| Effective Area | 7.22 |
| Maximum Height (Decimal Inch) | 19.13 |
| Outside Diameter (Inch) | 4-1/2 |
| Plunger Diameter | 2.50 |
| Base To Inlet Port (Inch) | 1 |
| Saddle Diameter (Inch) | 2.50 |
| Plunger Internal Thread Size | 1-13/16 - 16 |
| Plunger Internal Thread Length | 0.88 |
| Collar Thread | 4-1/2 - 12 |
| Collar Thread Length (Inch) | 1.66 |
| Y Center Hole Diameter | 1.31 |
| Base Mounting Holes Bolt Circle (Inch) | 3-5/8 |
| Two Base Mounting Holes Thread Size | 3/8 - 16 |
| Base Mounting Hole Thread Depth (Inch) | 0.55 |
| Maximum Pressure (psi) | 10000 |
