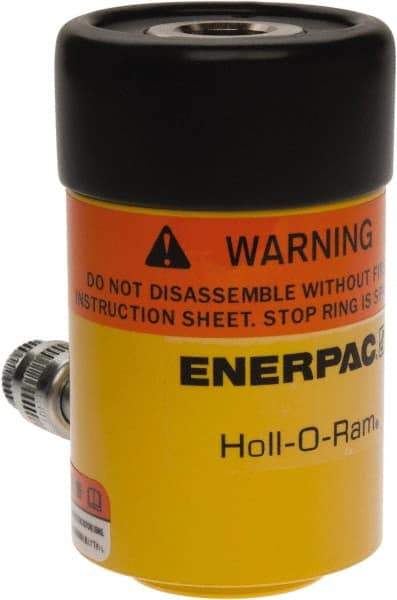

Enerpac - 12 Ton, 1.63" Stroke, 4.49 Cu In Oil Capacity, Portable Hydraulic Hollow Hole Cylinder - 2.76 Sq In Effective Area, 4.75" Lowered Ht., 6.38" Max Ht., 2.13" Cyl Bore Diam, 1.38" Plunger Rod Diam, 10,000 Max psi
Item #: 80016520
Brand: Enerpac
Model #: RCH121
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hollow Hole |
| Load Capacity (Ton) | 12 |
| Piston Stroke (Decimal Inch) | 1.63 |
| Cylinder Bore Diameter (Decimal Inch) | 2.13 |
| Lowered Height | 4.75 |
| Oil Capacity | 4.49 |
| Effective Area | 2.76 |
| Maximum Height (Decimal Inch) | 6.38 |
| Outside Diameter (Inch) | 2-3/4 |
| Plunger Diameter | 1.38 |
| Base To Inlet Port (Inch) | 1 |
| Plunger Internal Thread Size | None |
| Collar Thread | 2-3/4 - 16 |
| Collar Thread Length (Inch) | 1.19 |
| Y Center Hole Diameter | 0.77 |
| Maximum Pressure (psi) | 10000 |
