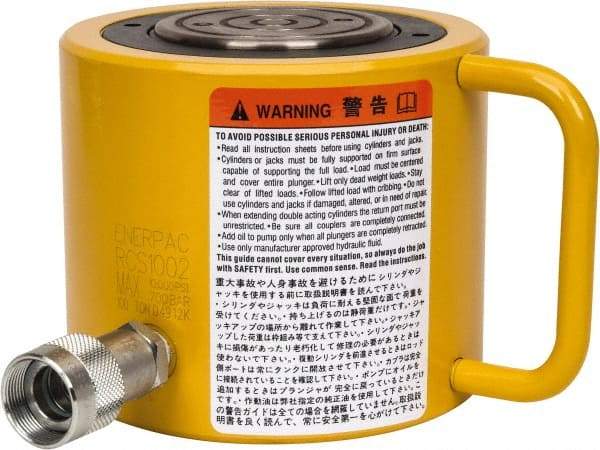

Enerpac - 100 Ton, 2.25" Stroke, 44.18 Cu In Oil Capacity, Portable Hydraulic Low Profile Cylinder - 19.64 Sq In Effective Area, 5.56" Lowered Ht., 7.81" Max Ht., 5" Cyl Bore Diam, 3.63" Plunger Rod Diam, 10,000 Max psi
Item #: 80013584
Brand: Enerpac
Model #: RCS1002
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Low Profile |
| Load Capacity (Ton) | 100 |
| Piston Stroke (Decimal Inch) | 2.25 |
| Cylinder Bore Diameter (Decimal Inch) | 5.00 |
| Lowered Height | 5.56 |
| Oil Capacity | 44.18 |
| Effective Area | 19.64 |
| Maximum Height (Decimal Inch) | 7.81 |
| Outside Diameter (Inch) | 6-1/2 |
| Plunger Diameter | 3.63 |
| Base To Inlet Port (Inch) | 1-1/4 |
| Plunger Internal Thread Size | M8 x 1.25 |
| Plunger Internal Thread Length | 0.40 |
| Base Mounting Holes Bolt Circle (Inch) | 2-3/16 |
| Maximum Pressure (psi) | 10000 |
