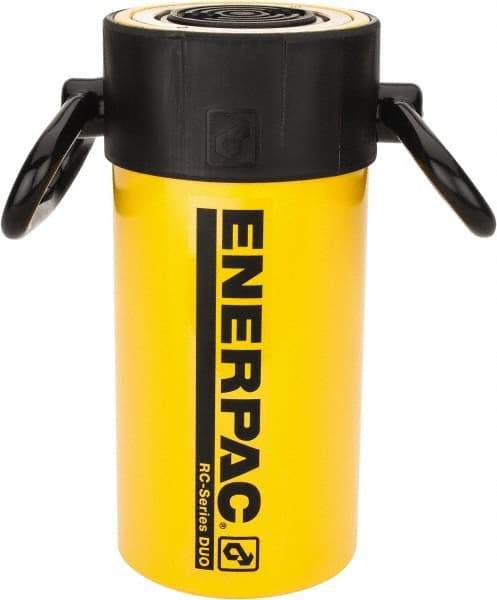

Enerpac - 50 Ton, 6.25" Stroke, 69.03 Cu In Oil Capacity, Portable Hydraulic Single Acting Cylinder - 11.04 Sq In Effective Area, 11.13" Lowered Ht., 17.38" Max Ht., 3.75" Cyl Bore Diam, 3.125" Plunger Rod Diam, 10,000 Max psi
Item #: 80013261
Brand: Enerpac
Model #: RC506
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 50 |
| Piston Stroke (Decimal Inch) | 6.25 |
| Cylinder Bore Diameter (Decimal Inch) | 3.75 |
| Lowered Height | 11.13 |
| Oil Capacity | 69.03 |
| Effective Area | 11.04 |
| Maximum Height (Decimal Inch) | 17.38 |
| Outside Diameter (Inch) | 5 |
| Plunger Diameter | 3.13 |
| Base To Inlet Port (Inch) | 1-3/8 |
| Saddle Diameter (Inch) | 2.81 |
| Plunger Internal Thread Size | None |
| Collar Thread | 5 - 12 |
| Collar Thread Length (Inch) | 2.19 |
| Base Mounting Holes Bolt Circle (Inch) | 3-3/4 |
| Two Base Mounting Holes Thread Size | 1/2-13 |
| Base Mounting Hole Thread Depth (Inch) | 0.75 |
| Maximum Pressure (psi) | 10000 |
