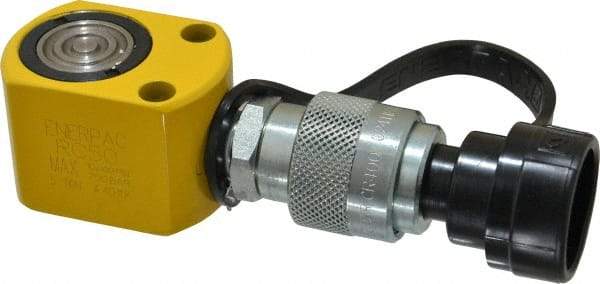

Enerpac - 5 Ton, 0.63" Stroke, 0.62 Cu In Oil Capacity, Portable Hydraulic Single Acting Cylinder - 0.99 Sq In Effective Area, 1.63" Lowered Ht., 2.25" Max Ht., 1.13" Cyl Bore Diam, 1" Plunger Rod Diam, 10,000 Max psi
Item #: 80012602
Brand: Enerpac
Model #: RC50
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 5 |
| Piston Stroke (Decimal Inch) | 0.63 |
| Cylinder Bore Diameter (Decimal Inch) | 1.13 |
| Lowered Height | 1.63 |
| Oil Capacity | 0.62 |
| Effective Area | 0.99 |
| Maximum Height (Decimal Inch) | 2.25 |
| Outside Diameter (Inch) | 2-5/16 |
| Plunger Diameter | 1.00 |
| Base To Inlet Port (Inch) | 3/4 |
| Saddle Diameter (Inch) | 1.00 |
| Plunger Internal Thread Size | None |
| Base Mounting Holes Bolt Circle (Inch) | 1-1/8 |
| Two Base Mounting Holes Thread Size | 0.22 |
| Maximum Pressure (psi) | 10000 |
