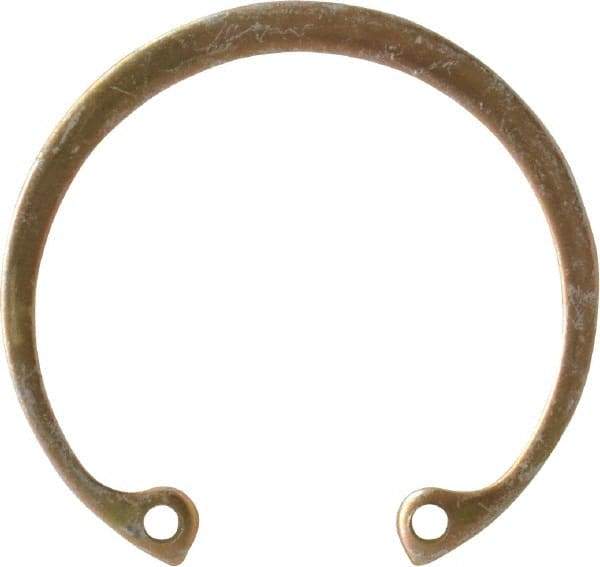

Rotor Clip - 0.05" Thick, Cadmium-Plated Finish, Steel Snap Internal Retaining Ring - 0.056" Groove Width, 0.043" Groove Depth, 1.461" Groove Diam, Grade 1060-1090
Item #: 79949533
Brand: Rotor Clip
Model #: HO-137ST MCD
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-3/8 |
| Bore Diameter (Decimal Inch) | 1.3750 |
| Bore Diameter (mm) | 34.93 |
| Groove Diameter (Decimal Inch) | 1.4610 |
| Groove Diameter (mm) | 37.11 |
| Groove Width (Decimal Inch) | 0.0560 |
| Groove Width (mm) | 1.42 |
| Free Outside Diameter (Decimal Inch) | 1.5260 |
| Free Outside Diameter (mm) | 38.76 |
| Military Specification | MS 16625-1137 |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Ring Thickness (mm) | 1.27 |
| Material Grade | 1060-1090 |
| Finish/Coating | Cadmium-Plated |
| Groove Depth (Decimal Inch) | 0.0430 |
| Groove Depth (mm) | 1.09 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.020 to 0.025 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thrust Load (Lb.) | 5050 (Groove Safety Factor); 9846 (Ring Safety Factor) |
| Hardness | Rockwell C 47-52 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
