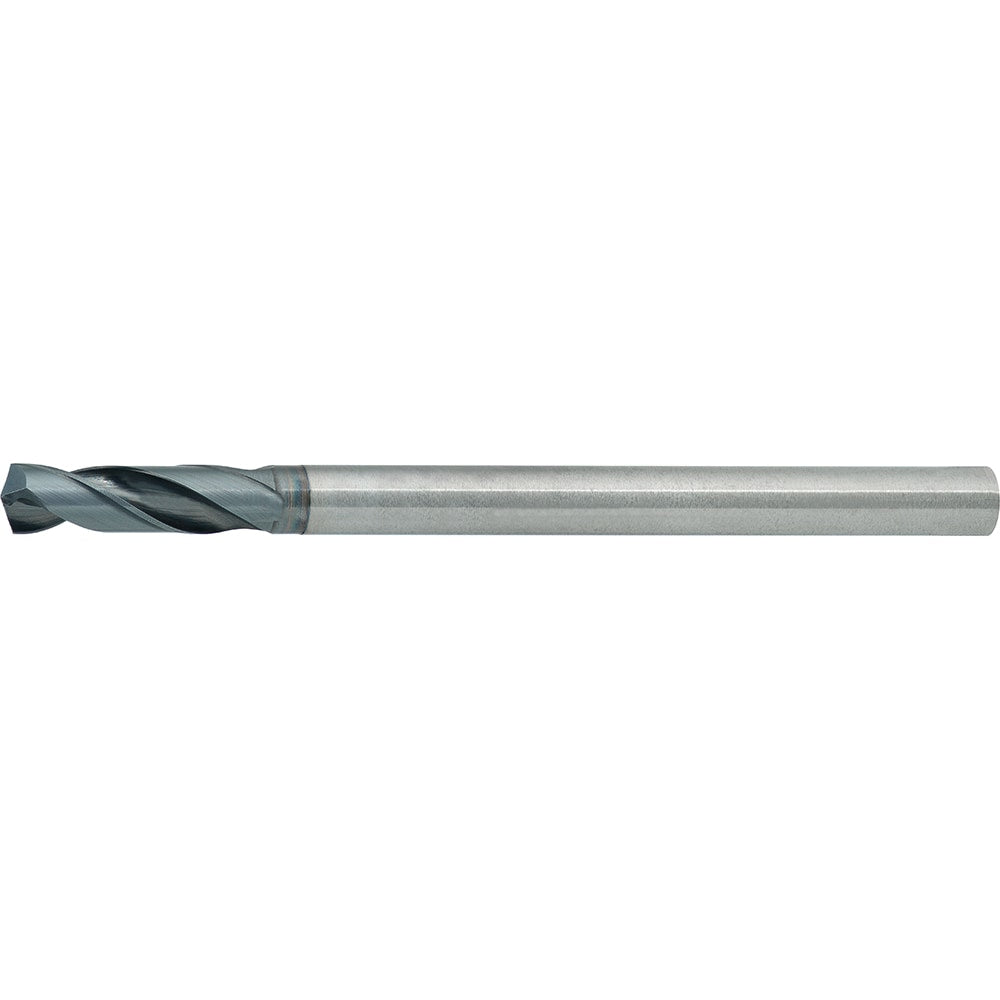

Jobber Drill: 4.30 mm Dia, 140 deg Point, Solid Carbide
Item #: 05902523
Brand: Mitsubishi
Model #: 10607480
Product Specifications
| Drill Bit Size (mm) | 4.30 |
| Drill Bit Size (Decimal Inch) | 0.1693 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlN |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Point Type | X-Thinned |
| Primary Workpiece Material | High-Temp Alloy |
| Coolant Through | Yes |
| Primary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 62.80 |
| Overall Length (Decimal Inch) | 2.4724 |
| Flute Length (mm) | 17.80 |
| Flute Length (Decimal Inch) | 0.7008 |
| Series | DWAE |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Flute By Diameter Ratio | 2xD |
| Shank Diameter (mm) | 5 |
| Maximum Drilling Depth (Decimal Inch) | 0.3701 |
| Maximum Drilling Depth (mm) | 9.40 |
| Shank Length (mm) | 43 |
| Shank Length (Decimal Inch) | 1.6929 |
| Drill Point Length (mm) | 0.80 |
| Drill Point Length (Decimal Inch) | 0.0315 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Shank Type | Straight |
| Drill Bit Grade | High Precision; High Performance |
| Specification Designation | ISO |
| UNSPSC Code | 23241634 |
