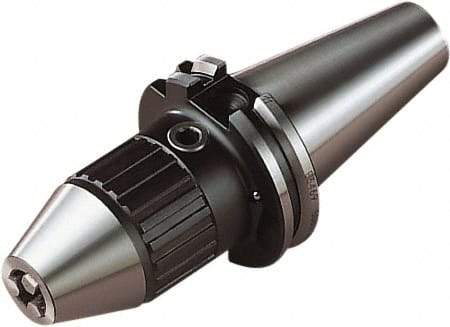

Seco - DIN69871-50, 2.49 to 15.98mm Capacity, Integral Shank Drill Chuck - Keyed, Taper Shank, 55.98mm Sleeve Diam
Item #: 79540290
Brand: Seco
Model #: 06073
Exact Tooling IR#: 04
Features and Benefits
Integral shank drill chucks are designed with the arbor (shank) built into the drill chuck, providing greater rigidity and concentricity than a press-fit tapered mount.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 15.98 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 0.6290 |
| Minimum Drill Chuck Capacity (mm) | 2.49 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0980 |
| Mount Type | Integral Shank |
| Mounting Size | DIN69871-50 |
| Key Style | Keyed |
| Closed Length (mm) | 111.99 |
| Closed Length (Decimal Inch) | 4.4090 |
| Shank Type | Taper Shank |
| Sleeve Diameter (mm) | 55.98 |
| Sleeve Diameter (Decimal Inch) | 2.2040 |
| Key Number | H06-4 |
