![1-1/2″ Cut Diam, 3/4″ Arbor Hole Diam, 0.315″ Max Depth, Indexable Square-Shoulder Face Mill Takes 5 Inserts, 0/90° Lead Angle, 1.57″ High, T490 LN.T 0804 Insert Style, Through Coolant, Series Helitang](http://exactindustrialsupply.com/cdn/shop/products/4581705-21_1024x1024.jpg?v=1675031756)

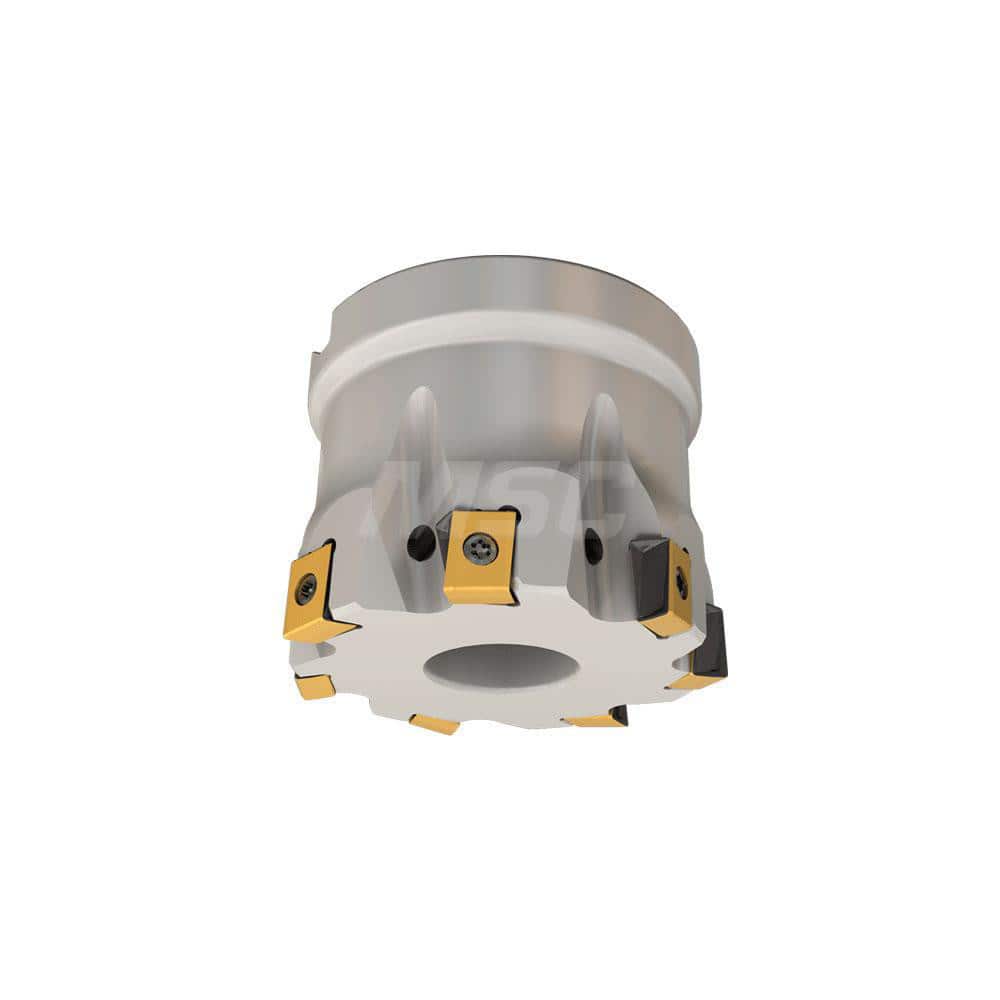

1-1/2″ Cut Diam, 3/4″ Arbor Hole Diam, 0.315″ Max Depth, Indexable Square-Shoulder Face Mill Takes 5 Inserts, 0/90° Lead Angle, 1.57″ High, T490 LN.T 0804 Insert Style, Through Coolant, Series Helitang
Item #: 79345096
Brand: Iscar
Model #: 3104900
Product Specifications
Maximum Cutting Diameter (Inch) | 1-1/2 |
Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
Maximum Depth of Cut (Decimal Inch) | 0.3150 |
Arbor Hole Diameter (Decimal Inch) | 0.7500 |
Compatible Insert Size Code | T490 LN.T0804 |
Cutter Style | T490 FLN-08 |
Cutting Direction | Right Hand |
Insert Holding Method | Screw |
Lead Angle | 0/90 |
Series | Helitang |
Overall Height (Decimal Inch) | 1.5700 |
Keyway Width (Decimal Inch) | 0.3120 |
Hub Diameter (Decimal Inch) | 0.7500 |
Hub Diameter (Inch) | 3/4 |
Pitch Type | Fine |
Standards | ISO |
ISO Number | T490 FLN D1.50-6-.75-08 |
Coolant Hole Diameter (Decimal Inch) | 0.6300 |
Complete Insert Compatibility | T490 LNHT 080412PNR; T490 LNHT 080408PNR; T490 LNMT 0804PNR-CS; T490 LNMT 080408PNR; T490 LNMT 0804PNR; T490 LNHT 080404PNR; T490 LNHT 080416PNR; T490 LNHT 080404PNR-RD |
Keyway Depth (Decimal Inch) | 0.187000 |
Coolant Through | Yes |
Number Of Cutter Inserts | 5 |
Number Of Flutes | 5 |
