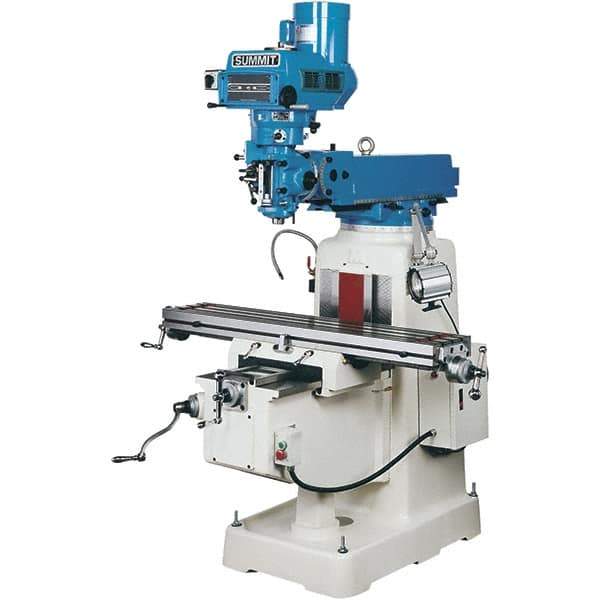

Summit - 10" Table Width x 50" Table Length, Electronic Variable Speed Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp
Item #: 78895265
Brand: Summit
Model #: EVS-350B
Exact Tooling IR#: 04
Features and Benefits
Electronic Variable Speed control (EVS, are similar to variable speed pulleys, but the speed is controlled electronically rather than manually by turning a dial. They feature several speeds within a specified speed range.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications | |
---|---|
Spindle Speed Control | Electronic Variable Speed |
Table Length (Inch) | 50 |
Table Width (Inch) | 10 |
Phase | 3 |
Longitudinal Travel (Decimal Inch) | 36.0000 |
Cross Travel (Decimal Inch) | 16.0000 |
Knee Travel (Decimal Inch) | 18.5000 |
Number of Spindle Speeds | Variable |
Maximum Spindle Speed (RPM) | 4300.00 |
Minimum Spindle Speed (RPM) | 0 |
Includes | Way Covers; Chip Pan; Coolant System; Work Light |
Spindle Travel Length (mm) | 127.00 |
Spindle Taper Size | R8 |
Spindle Power Feed Rate Per Minute (Decimal Inch) | 0.0060 |
Minimum Spindle to Table Distance (Decimal Inch) | 2.5000 |
Maximum Spindle to Table Distance (Decimal Inch) | 17.5000 |
Minimum Spindle to Column Distance (Decimal Inch) | 6.2500 |
Maximum Spindle To Column Distance (Decimal Inch) | 28.2500 |
Table Load Capacity (Lb.) | 850.00 |
Left-Hand Head Tilt (Degrees) | 90.00 |
Right-Hand Head Tilt (Degrees) | 90.00 |
Forward Head Tilt (Degrees) | 45.00 |
Backward Head Tilt (Degrees) | 45.00 |
Horsepower (HP) | 3.00 |
Voltage | 220/440/360 |
Overall Length (Inch) | 67 |
Overall Height (Inch) | 92 |
Overall Depth (Inch) | 78 |
Warranty | Mfr's One Year Warranty |
