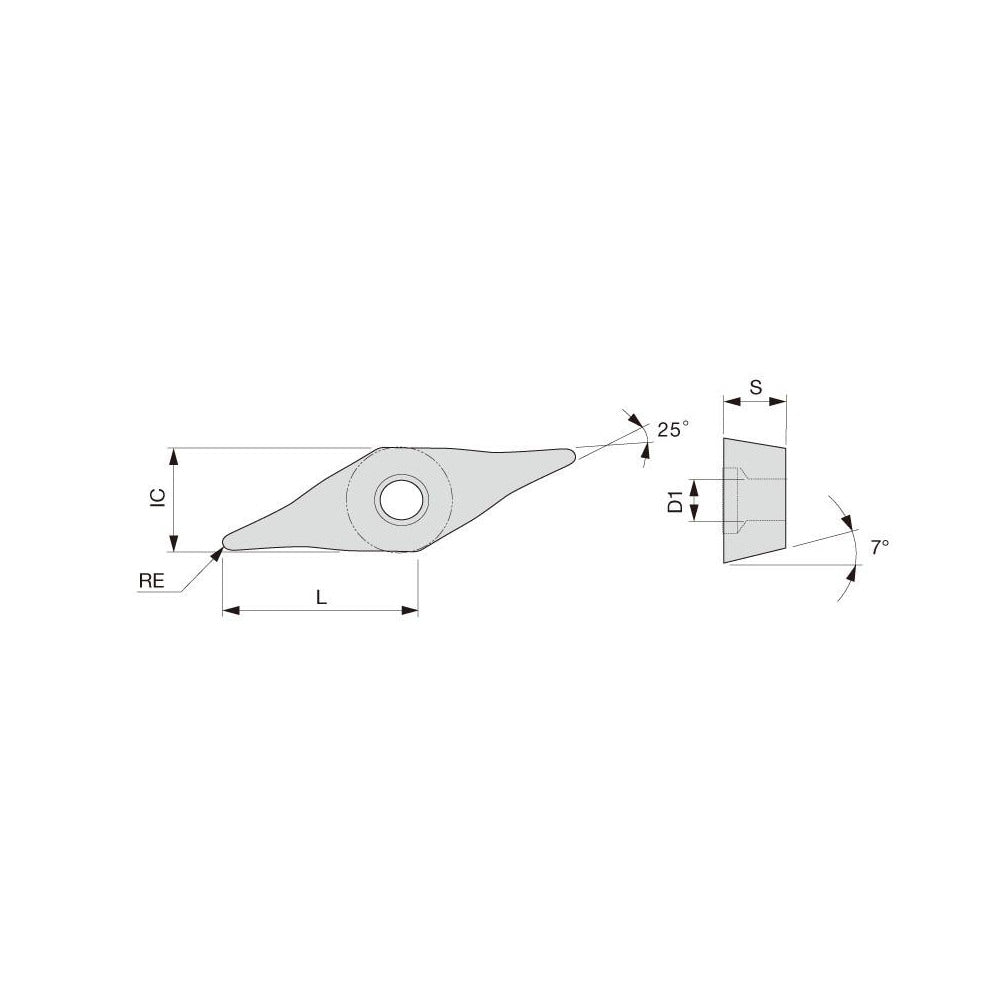

Turning Insert: YWMT16T304-ZM T9225, Carbide
Item #: 20855664
Brand: Tungaloy
Model #: 6781087
Product Specifications
| ANSI Insert Code | YWMT |
| ISO Insert Code | YWMT16T304 |
| Relief Angle | 7 |
| Insert Style | YWMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 25 |
| Manufacturer Grade | T9225 |
| Coating/Finish | Titanium; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | YWMT-ZM |
| Inscribed Circle (Decimal Inch) | 0.2760 |
| Insert Material | Carbide |
| Insert Shape | Non-ISO Specialty Shapes |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | Y |
| Hole Diameter (Decimal Inch) | 0.1130 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Clearance Code | W |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 1.3080 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | YWMT16T304-ZM |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6781087 |
| Material Grade | P25; P15 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | ZM |
| Rake Angle | -7 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.2760 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| ISO Size Code | 16T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16T304 |
