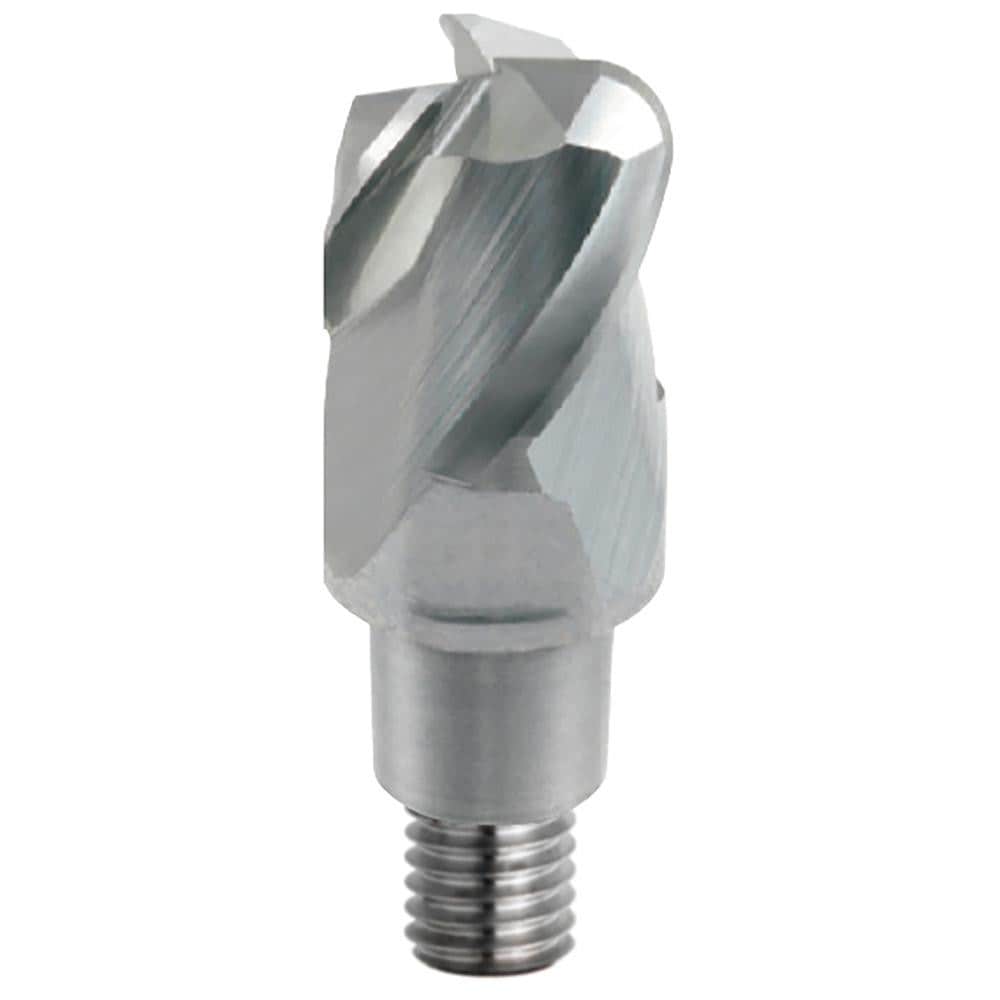

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 25.40; Mill Diameter (Inch): 1; Length of Cut (mm): 20.3200; Number Of Flutes: 3
Item #: 76118579
Brand: Mitsubishi
Model #: 827391
Product Specifications
| Mill Diameter (mm) | 25.40 |
| Mill Diameter (Inch) | 1 |
| Length of Cut (mm) | 20.3200 |
| Number Of Flutes | 3 |
| Overall Length (mm) | 63.3500 |
| Corner Radius (mm) | 1.52 |
| Coating/Finish | Uncoated |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0600 |
| Overall Length (Decimal Inch) | 2.4940 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Centercutting | Yes |
| Connection Type | iMX25 |
| Flute Type | Helical |
| Material Grade | Solid Carbide |
| Helix Angle | 37.5 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | No |
| Variable Helix | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8000 |
| Variable Index | No |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
