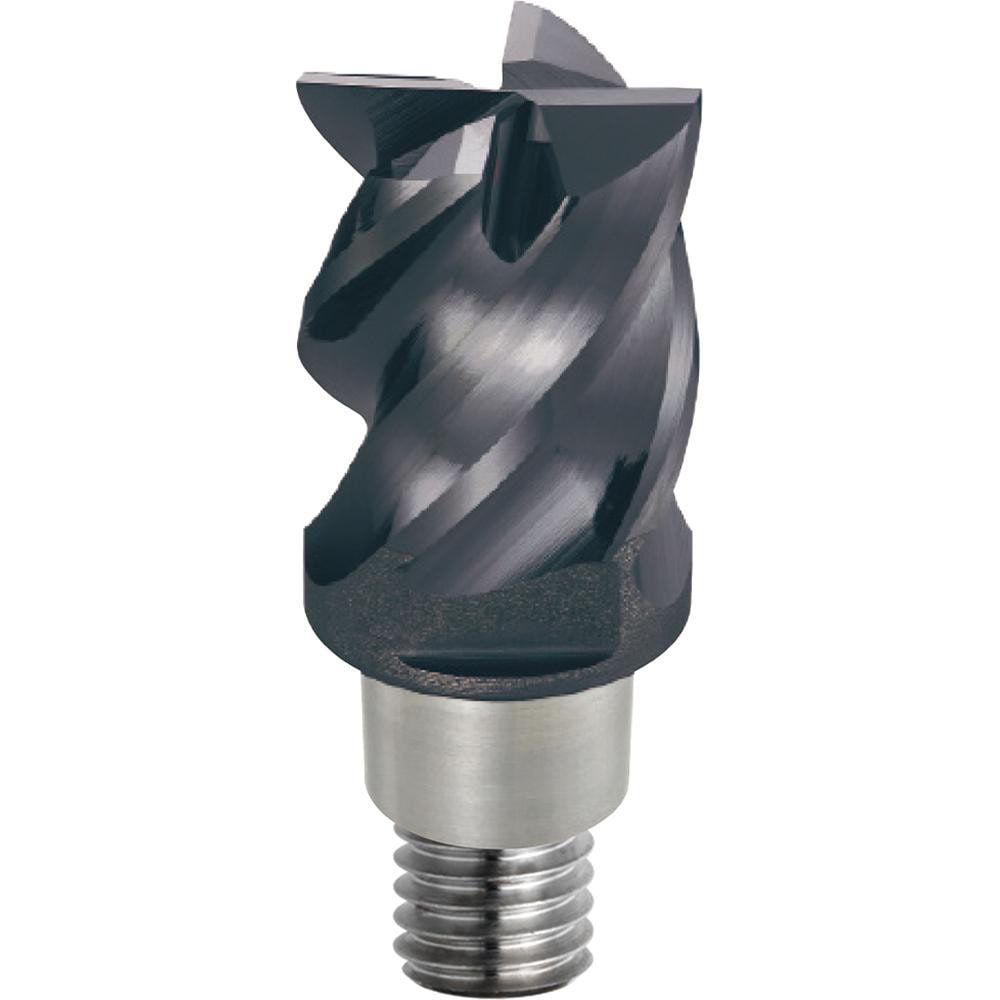

Square End Mill Heads; Mill Diameter (mm): 18.00; Length of Cut (mm): 18.5000; Connection Type: iMX16
Item #: 76122035
Brand: Mitsubishi
Model #: 846399
Product Specifications
| Mill Diameter (mm) | 18.00 |
| Length of Cut (mm) | 18.5000 |
| Connection Type | iMX16 |
| Overall Length (mm) | 27.0000 |
| Material | Solid Carbide |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Flute Type | Helical Flute |
| Helix Angle | Variable |
| Helix Style | Variable |
| Material Grade | Ultra Fine Micrograin |
| Series/List | iMX |
| Shank Diameter (mm) | 15.5000 |
| Variable Helix | Yes |
| Pitch | Variable |
| End Type | Square |
| Length Type | Short |
| Case Material | Plastic |
| Chipbreaker | No |
| Chamfer Length (mm) | 18.50 |
| Shank Type | Dual Contact Taper; Threaded |
| Extended Reach | Yes |
| UNSPSC Code | 27112803 |
| Single Or Double End | Single End |
| Manufacturers Grade | EP7020 |
| Material Application | Superalloys & Titanium |
| Variable Index | Yes |
| Number Of Flutes | 4 |
| Case Type | Blow Molded |
| Finish Coating | AlTiN |
| Country of Origin | Japan |
