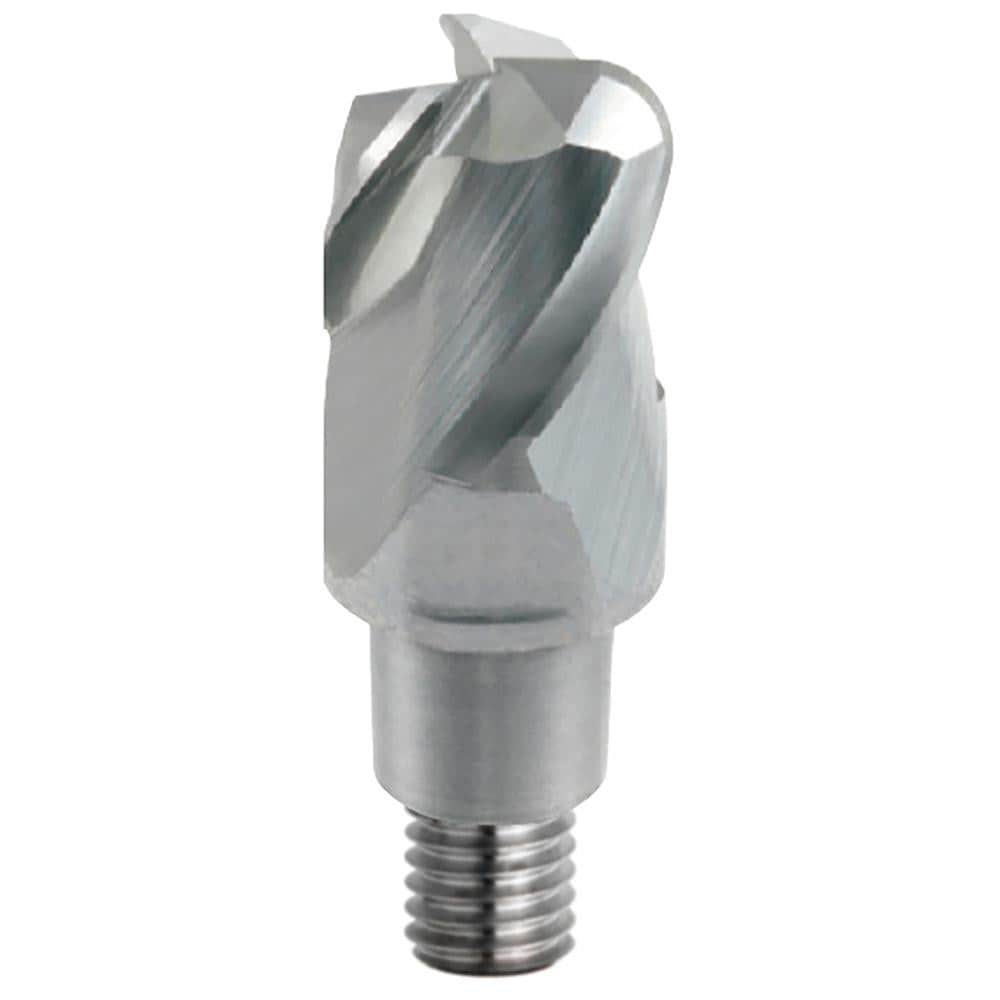

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 15.88; Mill Diameter (Inch): 5/8; Length of Cut (Inch): 1/2; Length of Cut (mm): 12.7000; Number Of Flutes: 3
Item #: 76118272
Brand: Mitsubishi
Model #: 827358
Product Specifications
| Mill Diameter (mm) | 15.88 |
| Mill Diameter (Inch) | 5/8 |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (mm) | 12.7000 |
| Number Of Flutes | 3 |
| Overall Length (mm) | 41.2500 |
| Corner Radius (mm) | 0.76 |
| Coating/Finish | Uncoated |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0300 |
| Overall Length (Decimal Inch) | 1.6240 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Centercutting | Yes |
| Connection Type | iMX16 |
| Flute Type | Helical |
| Material Grade | Solid Carbide |
| Helix Angle | 37.5 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | No |
| Variable Helix | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Variable Index | No |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
