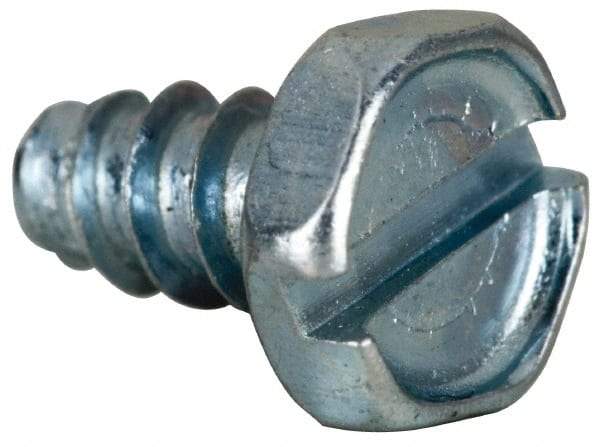

Value Collection - #6 Hex Head Slotted Sheet Metal Screw - Steel, 1/4" Length Under Head, AISI 1016, ASME B18.6.3 & SAE J933, Grade 1016-1024
Item #: 78365533
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Hex head types have flat bearing surfaces, sharp corners and six uniform sides. They are used with flat washers and are tightened with wrenches in limited-clearance applications.
Slotted drive types are used with flat-blade drivers. They have one linear slot that runs the length of the head. Drivers must be centered in the slot during tightening or they will slip out and damage the fastener.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Type B screws have large, flat points and a fine thread pitch. They are used to cut threads in heavier sheet metal. They can also be used in blind holes.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | Hex |
| Screw Size | #6 |
| Length (Inch) | 1/4 |
| Drive Type | Slotted |
| Material | Steel |
| Material Grade | 1016-1024 |
| Point Type | Type B |
| Length Measurement Type | Length Under Head |
| Finish/Coating | Zinc-Plated |
| Fastener Standard | AISI 1016; ASME B18.6.3; SAE J933 |
