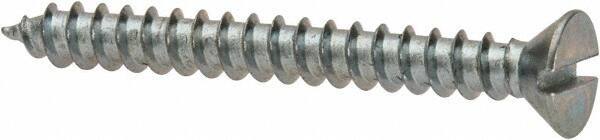

Value Collection - #6 Flat Head Slotted Sheet Metal Screw - Steel, 1-1/4" OAL, AISI 1016, ASME B18.6.3, ASME B18.6.4 & SAE J933, Grade 1016-1024
Item #: 78365434
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Flat head fasteners have flat surfaces that taper toward the screw body to allow for countersinking. The flat head lies flush against the workpiece.
Slotted drive types are used with flat-blade drivers. They have one linear slot that runs the length of the head. Drivers must be centered in the slot during tightening or they will slip out and damage the fastener.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Type A screws have sharp points and coarse threads. They are used to cut threads in drilled or punched holes in thin sheet metal.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | Flat |
| Screw Size | #6 |
| Length (Inch) | 1-1/4 |
| Drive Type | Slotted |
| Material | Steel |
| Material Grade | 1016-1024 |
| Point Type | Type A |
| Length Measurement Type | Overall Length |
| Finish/Coating | Zinc-Plated |
| Fastener Standard | AISI 1016; ASME B18.6.3; ASME B18.6.4; SAE J933 |
