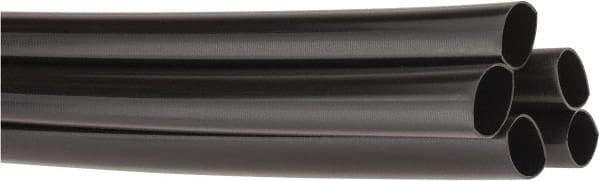

3M - 48" Long, 2.5:1, Polyolefin Heat Shrink Electrical Tubing - Black
Item #: 77677383
Brand: 3M
Model #: 00051128597170
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tubing Style | Heat Shrink |
| Material | Polyolefin |
| Shrink Ratio | 2.5:1 |
| Overall Length (Decimal Inch) | 48 |
| Overall Length (Feet) | 4.00 |
| Maximum Compatible Wire Size (AWG) | 3/0 |
| Minimum Compatible Wire Size (AWG) | 4 |
| Color | Black |
| Inside Diameter Before Shrinking (mm) | 19.05 |
| Inside Diameter Before Shrinking (Inch) | 3/4 |
| Inside Diameter Before Shrinking (Decimal Inch) | 3/4 |
| Inside Diameter After Shrinking (Decimal Inch) | 0.3130 |
| Inside Diameter After Shrinking (mm) | 7.95 |
| Shrink Temperature (F) | 275.00 |
| Resistance Features | Corrosion Resistant; Fluid Resistant; Fungus Resistant |
| Wall Thickness After Shrinking (mm) | 1.65 |
| Wall Thickness After Shrinking (Decimal Inch) | 0.0650 |
| Maximum Operating Temperature (F) | 230 |
| Minimum Operating Temperature (F) | -67 |
| Standards Met | AMS3634; MIL-DTL-23053/4 Class 1; SAE-AMS-DTL-23053/4 Class 1; UL Listed File E157227 |
