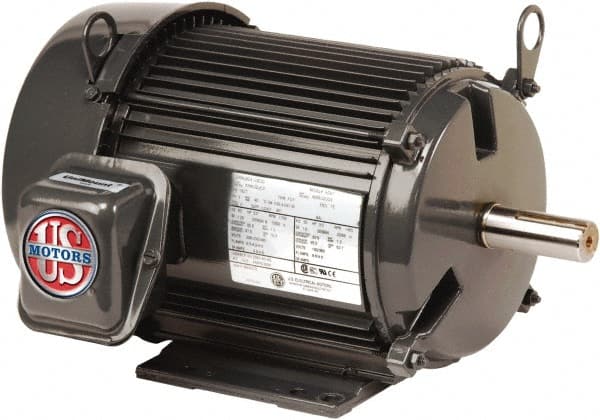

25 hp, TEFC Enclosure, No Thermal Protection, 3530, 2890 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 284 Frame, C-Face with Base Mount, 1 Speed, Double Shielded Ball Bearings, 65-57/28.4 Full Load Amps, F Class Insu

25 hp, TEFC Enclosure, No Thermal Protection, 3530, 2890 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 284 Frame, C-Face with Base Mount, 1 Speed, Double Shielded Ball Bearings, 65-57/28.4 Full Load Amps, F Class Insu


Item #: 77653293
Brand: US Motors
Model #: U25P1DC

Product Specifications

Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 25; 25 hp old; 25 h; 25 hp; 25 W
Thermal Protection Rating None
Enclosure Style TEFC
Horse Power 25 hp old; 25 h; 25 hp; 25 W
Name Plate RPMs 3530, 2890
Voltage 208-230/460 & 190/380
Frequency Hz 60/50 Hz; 60/50
Frame Size 284
Mount Type C-Face w/Base
Number of Speeds 1
Bearing Type Double Shielded Ball
Application General Equipment
Full Load Amperage 65-57/28.4
Service Factor Rating 1.0
Applications General Equipment
Insulation Class F
Frame Material Aluminum
Service Factor Rating 1
PSC Code 6105
$3,573.06
