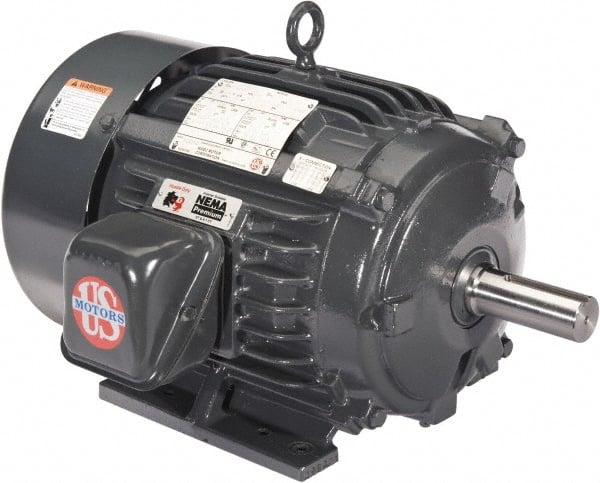

25 hp, TEFC Enclosure, No Thermal Protection, 3560, 2940 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 284 Frame, Horizontal-Footed Mount, 1 Speed, Double Shielded Ball Bearings, 66-57/28.7 Full Load Amps, F Class Ins

25 hp, TEFC Enclosure, No Thermal Protection, 3560, 2940 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 284 Frame, Horizontal-Footed Mount, 1 Speed, Double Shielded Ball Bearings, 66-57/28.7 Full Load Amps, F Class Ins


Item #: 77653269
Brand: US Motors
Model #: H25P1D

Product Specifications

Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 25; 25 hp old; 25 h; 25 hp; 25 W
Thermal Protection Rating None
Enclosure Style TEFC
Horse Power 25 hp old; 25 h; 25 hp; 25 W
Name Plate RPMs 3560, 2940
Voltage 208-230/460 & 190/380
Frequency Hz 60/50 Hz; 60/50
Frame Size 284
Mount Type Horizontal-Footed
Number of Speeds 1
Bearing Type Double Shielded Ball
Application General Equipment; Harsh Environment
Full Load Amperage 66-57/28.7
Service Factor Rating 1.0
Applications General Equipment; Harsh Environment
Insulation Class F
Frame Material Cast Iron
Service Factor Rating 1
PSC Code 6105
$3,231.40
