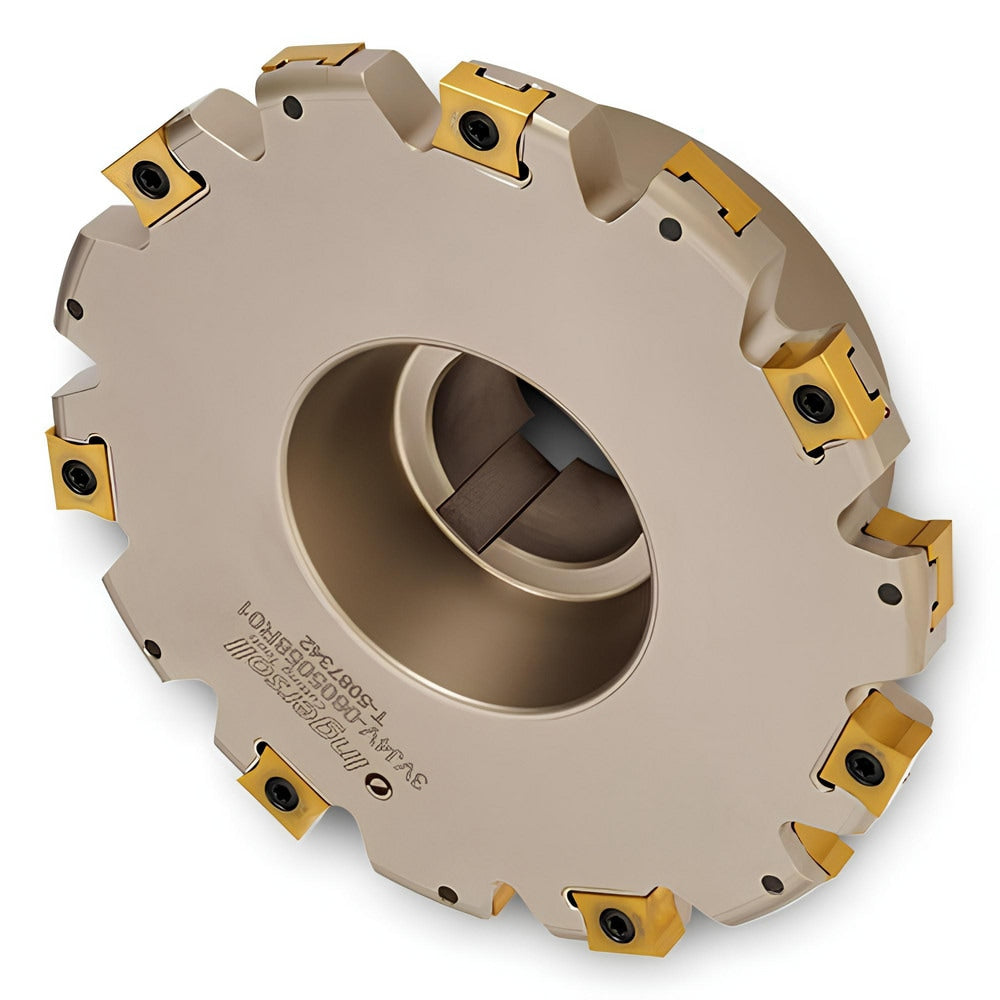

Brand: Ingersoll Cutting Tools / Part #: 2914014

Brand: Ingersoll Cutting Tools / Part #: 2914014


Item #: 38634168
Brand: Ingersoll Cutting Tools
Model #: 2914014

Product Specifications

Connection Type Shell Mount
Cutting Width (Inch) 1/2
Maximum Depth of Cut (Decimal Inch) 0.9200
Hole Diameter (Inch) 1
Cutter Diameter (Inch) 4
Shank Diameter (Decimal Inch) 2.0000
Shank Length (Decimal Inch) 1.0000
Cutting Direction Right Hand
Insert Holding Method Screw
Number Of Cutter Inserts 10
Compatible Insert Style IHX
Compatible Insert Size Code 415
Staggered Tooth Yes
Tooth Type Staggered Tooth
Rake Negative
Tool Material Steel
Series 3VJ4V
Toolholder Style 3VJ4V
Hub Diameter (Inch) 2
Keyway Width (Decimal Inch) 0.3800
Tool Application Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
Maximum Cutting Width (Decimal Inch) 0.5000
Maximum Body Diameter (Decimal Inch) 4.0000
Cutter Body Width (Decimal Inch) 0.5000
Weldon Flat No
Manufacturers Catalog Number 3VJ4V-04050D3R01
Overall Length (Inch) 1-1/2
Number Of Teeth 10
Coolant Through No
Complete Insert Compatibility INX415..
Coating/Finish Coated
$1,455.30
