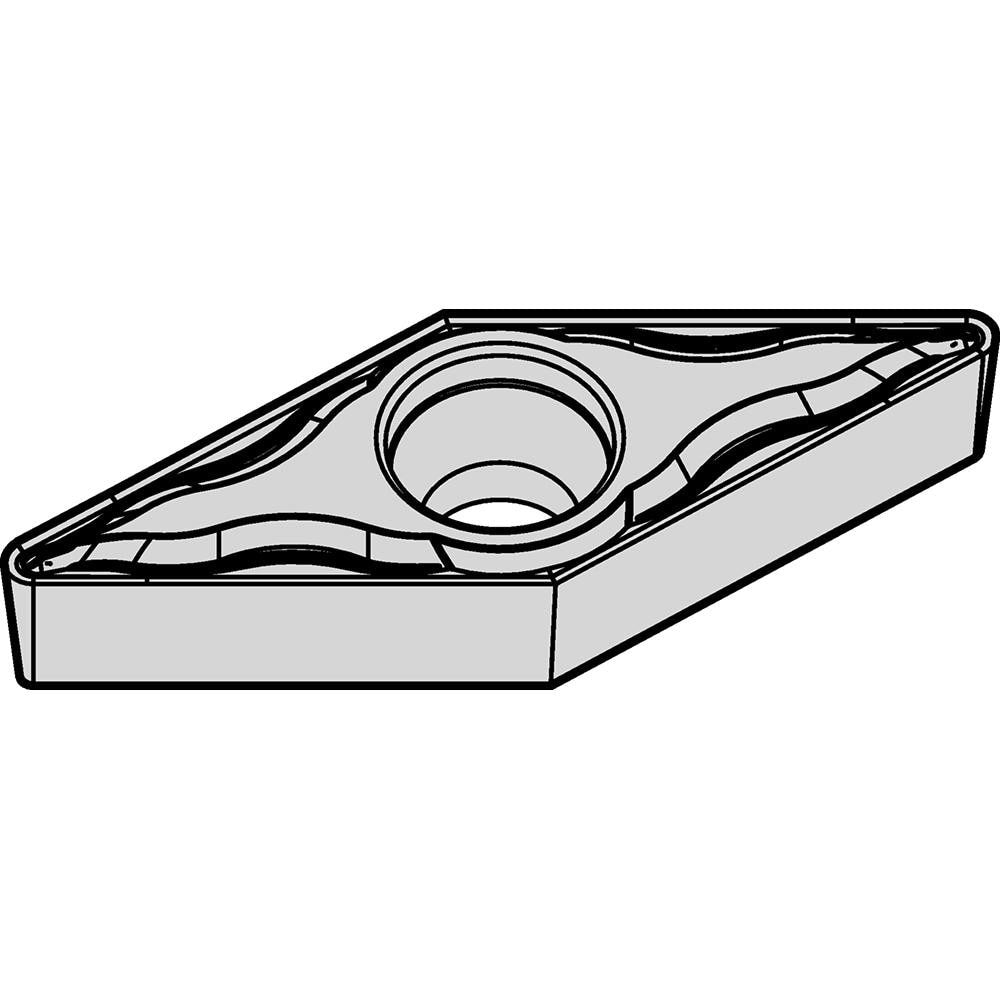

Turning Insert: VBMT221FP, Carbide
Item #: 12874087
Brand: Widia
Model #: 4168807
Product Specifications
| ANSI Insert Code | VBMT221 |
| ISO Insert Code | VBMT110304 |
| Relief Angle | 5 |
| Insert Style | VBMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35 |
| Manufacturer Grade | WM25CT |
| Coating/Finish | TiOCN; TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | VBMT-FP |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.9400 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | B |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.8718 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Superalloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S |
| Iso Code | VBMT110304FP |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 4168807 |
| Material Grade | M25 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | FP |
| Rake Angle | 23 |
| Cutting Edge Style | Honed |
| Industry Standard Number | VBMT221FP |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | Turning |
| ANSI Size Code | 221 |
| ISO Size Code | 110304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 221 |
