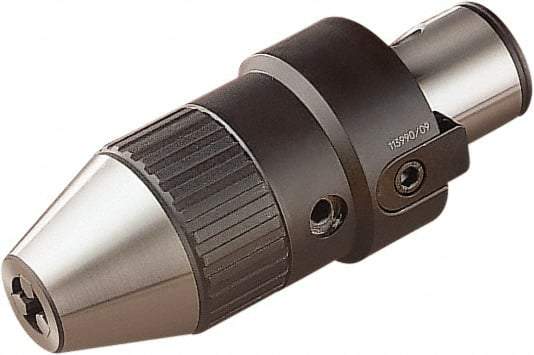

Seco - 0.99 to 12.98mm Capacity, Integral Shank Drill Chuck - Keyed, Modular Connection, 42.98mm Sleeve Diam
Item #: 76708395
Brand: Seco
Model #: 55942
Exact Tooling IR#: 04
Features and Benefits
Integral shank drill chucks are designed with the arbor (shank) built into the drill chuck, providing greater rigidity and concentricity than a press-fit tapered mount.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 12.98 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 0.5110 |
| Minimum Drill Chuck Capacity (mm) | 0.99 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0390 |
| Mount Type | Integral Shank |
| Key Style | Keyed |
| Closed Length (mm) | 100.00 |
| Closed Length (Decimal Inch) | 3.9370 |
| Shank Type | Modular Connection |
| Sleeve Diameter (mm) | 42.98 |
| Sleeve Diameter (Decimal Inch) | 1.6920 |
| Modular Connection Size | Graflex 5 |
| Key Number | H06-4 |
