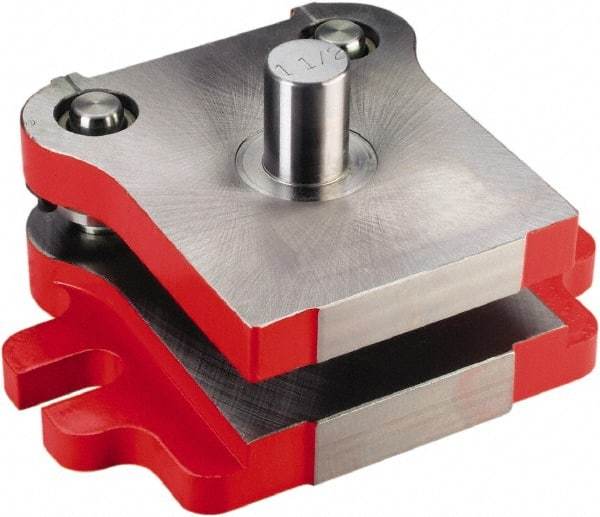

Anchor Danly - 6" Guide Post Length, 1-1/2" Die Holder Thickness, 12-1/4" Radius, Back Post Steel Die Set - 14-7/8" Overall Width x 7-11/16" Overall Depth
Item #: 76033950
Brand: Anchor Danly
Model #: 1005-C1-H
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Die Width/Diameter Space (Inch) | 10 |
| Die Depth Space (Inch) | 5 |
| Guide Post Length (Inch) | 6 |
| Die Holder Thickness (Inch) | 1-1/2 |
| Punch Holder Thickness (Inch) | 1-3/8 |
| Material | Steel |
| Overall Width (Inch) | 14-7/8 |
| Overall Depth (Inch) | 7-11/16 |
| Guide Post Diameter (Inch) | 1-1/4 |
| Post Center To Front (Inch) | 6 |
| Width Between Posts (Inch) | 9-1/8 |
| Base Mounting Slot Radius (Inch) | 12-1/4 |
| Type | Back Post Steel Die Set |
