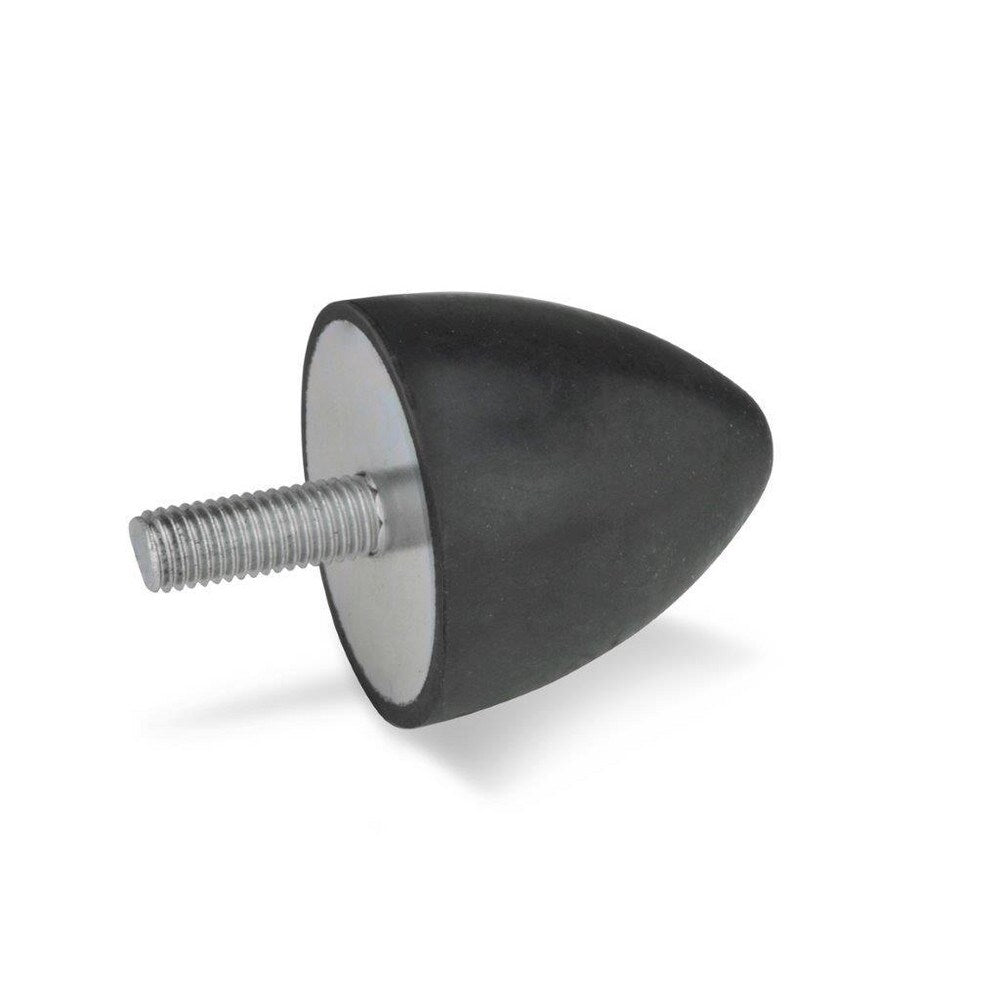

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 130.00 N; Top Diameter: 20.00; Thread Size: M6x1; Overall Width: 20 mm
Item #: 71801856
Brand: J.W. Winco
Model #: 453-20-24-M6-S-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 130.00 N |
| Top Diameter | 20.00 |
| Thread Size | M6x1 |
| Overall Width | 20 mm |
| Overall Diameter | 20 mm |
| Thread Length (Decimal Inch) | 0.7100 |
| Deflection | 0.2400 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 42 mm |
| UNSPSC Code | 23153130 |
| Country of Origin | Hungary |
