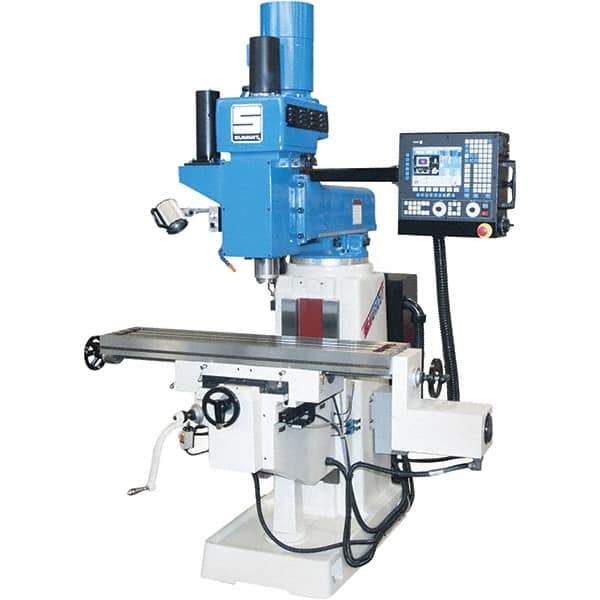

Summit - 11" Table Width x 52" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - CAT40 Spindle Taper, 5 hp
Item #: 75133439
Brand: Summit
Model #: VS-550B
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Inch) | 52 |
| Table Width (Inch) | 11 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 32.0000 |
| Cross Travel (Decimal Inch) | 32.0000 |
| Knee Travel (Decimal Inch) | 22.0000 |
| Number of Spindle Speeds | Variable |
| Maximum Spindle Speed (RPM) | 3500.00 |
| Minimum Spindle Speed (RPM) | 80.00 |
| Includes | Air Powered Draw Bar; Way Covers; Chip Pan; Coolant System; Work Light |
| Spindle Travel Length (mm) | 127.00 |
| Spindle Taper Size | CAT40 |
| Spindle Power Feed Rate Per Minute (Decimal Inch) | 0.0060 |
| Minimum Spindle to Table Distance (Decimal Inch) | 2.0000 |
| Maximum Spindle to Table Distance (Decimal Inch) | 22.0000 |
| Minimum Spindle to Column Distance (Decimal Inch) | 8.0000 |
| Maximum Spindle To Column Distance (Decimal Inch) | 32.0000 |
| Table Load Capacity (Lb.) | 990.00 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Horsepower (HP) | 5.00 |
| Voltage | 220/440/360 |
| Overall Length (Inch) | 69 |
| Overall Height (Inch) | 100 |
| Overall Depth (Inch) | 80 |
| Warranty | Mfr's One Year Warranty |
