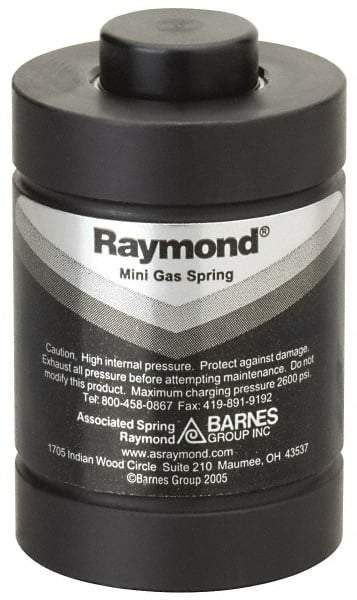

Associated Spring Raymond - M8x1.25 Mt Hole, 1.97" Rod Diam, 2.95" Diam, 16mm Max Stroke, Nitrogen Gas Spring Cylinder - 4.17" OAL, 14,800 Lb Full Stroke Spring Force, 2,175 psi Initial Charge
Item #: 75003863
Brand: Associated Spring Raymond
Model #: CU 4700-016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Diameter (Decimal Inch) | 2.9500 |
| Maximum Stroke (Decimal Inch) | 0.625 |
| Maximum Stroke (mm) | 16.00 |
| Spring Force Full Stroke | 14800 |
| Spring Force Initial | 10560.0 |
| Overall Length (Decimal Inch) | 4.1700 |
| Initial Charge Pressure | 2175 |
| Mounting Hole Thread Size | M8x1.25 |
| Rod Diameter (Decimal Inch) | 1.970 |
