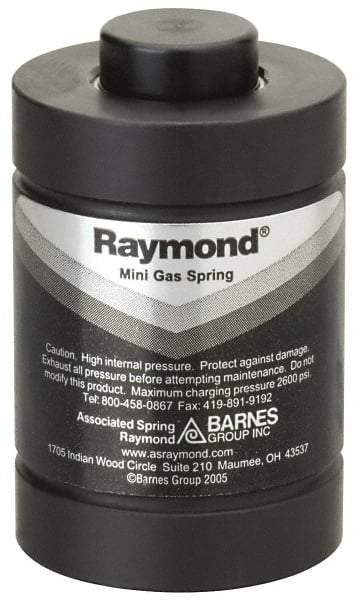

Associated Spring Raymond - M8x1.25 Mt Hole, 1.97" Rod Diam, 2.95" Diam, 10mm Max Stroke, Nitrogen Gas Spring Cylinder - 3.15" OAL, 15,100 Lb Full Stroke Spring Force, 2,175 psi Initial Charge
Item #: 75003855
Brand: Associated Spring Raymond
Model #: CU 4700-010
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Diameter (Decimal Inch) | 2.9500 |
| Maximum Stroke (Decimal Inch) | 0.393 |
| Maximum Stroke (mm) | 10.00 |
| Spring Force Full Stroke | 15100 |
| Spring Force Initial | 10560.0 |
| Overall Length (Decimal Inch) | 3.1500 |
| Initial Charge Pressure | 2175 |
| Mounting Hole Thread Size | M8x1.25 |
| Rod Diameter (Decimal Inch) | 1.970 |
