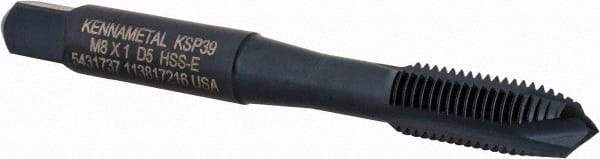

Kennametal - M8x1.00, 3 Flute, Oxide Finish, Vanadium High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 2-23/32" OAL, 17.5mm Thread Length, 8.08mm Shank Diam, Series GOtap
Item #: 73724585
Brand: Kennametal
Model #: 5431737
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Vanadium High Speed Steel (HSSE) is made of high speed steel, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used in general applications on stainless steels and high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M8x1.00 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | D5 |
| Finish/Coating | Oxide |
| Material | Vanadium High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.7100 |
| Overall Length (Inch) | 2-23/32 |
| Overall Length (mm) | 28.50 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.6900 |
| Thread Length (mm) | 17.50 |
| Series/List | GOtap |
| Neck Length (Decimal Inch) | 0.4300 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Shank Diameter (mm) | 8.08 |
| Square Size (Decimal Inch) | 0.2360 |
| Square Size (mm) | 5.99 |
| Material Application | Steel |
| Material Application2 | Stainless Steel |
