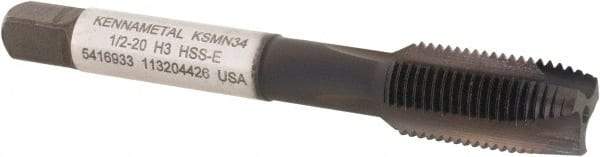

Kennametal - 1/2-20, 3 Flute, TiN/CrC/C Finish, Vanadium High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 3-3/8" OAL, 23.9mm Thread Length, 9.32mm Shank Diam, 3B Class of Fit, Series GOtap
Item #: 73724296
Brand: Kennametal
Model #: 5416933
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Titanium nitride plus chromium carbide carbon (TiN+CrC/C) is made of wear-resistant titanium nitride base and a chromium carbide carbon coating. It is commonly used on ferrous and nonferrous materials.
Vanadium High Speed Steel (HSSE) is made of high speed steel, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used in general applications on stainless steels and high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/2-20 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Finish/Coating | TiN/CrC/C |
| Material | Vanadium High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.3800 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (mm) | 44.20 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.9400 |
| Thread Length (mm) | 23.90 |
| Series/List | GOtap |
| Neck Length (Decimal Inch) | 0.8000 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Shank Diameter (mm) | 9.32 |
| Square Size (Decimal Inch) | 0.2720 |
| Square Size (mm) | 6.91 |
| Material Application | Steel |
| Material Application2 | Stainless Steel |
