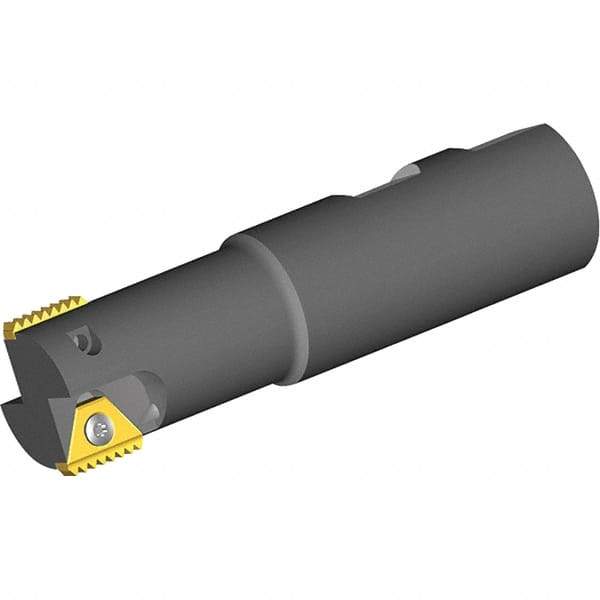

Vargus - 1.024" Cut Diam, 1.81" Max Depth of Cut, 1" Shank Diam, Internal/External Indexable Thread Mill - Insert Style 3B, 3/8" Insert Size, 2 Inserts, Toolholder Style BTM2C, 4.134" OAL
Item #: 72577737
Brand: Vargus
Model #: 67718
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0240 |
| Maximum Hole Depth (Decimal Inch) | 1.8100 |
| Insert Style | 3B |
| Insert Size (Decimal Inch) | 0.3750 |
| Toolholder Style | BTM2C |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.1340 |
| Number of Threading Inserts | 2 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.8900 |
