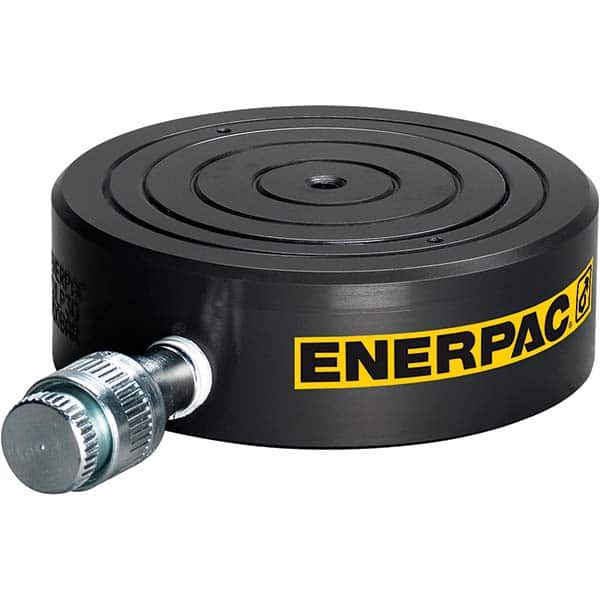

Enerpac - Portable Hydraulic Cylinders Type: Low Height Cylinder Load Capacity (Ton): 22.1875 (Inch)
Item #: 47766175
Brand: Enerpac
Model #: CULP20
Product Specifications
Portable Hydraulic Cylinders; Type: Low Height Cylinder ; Load Capacity (Ton): 22.1875 (Inch); Piston Stroke (Decimal Inch): 0.2400 ; Cylinder Bore Diameter (Decimal Inch): 2.36 ; Lowered Height: 1.26 ; Oil Capacity: 1.04
| Type | Low Height Cylinder |
| Load Capacity (Ton) | 22.1875 |
| Piston Stroke (Decimal Inch) | 0.2400 |
| Cylinder Bore Diameter (Decimal Inch) | 2.36 |
| Lowered Height | 1.26 |
| Oil Capacity | 1.04 |
| Effective Area | 4.38 |
| Maximum Height (Decimal Inch) | 1.5000 |
| Outside Diameter (Inch) | 3.5 |
| Base To Inlet Port (Inch) | 29/64 |
| Maximum Pressure (psi) | 10000.00 |
