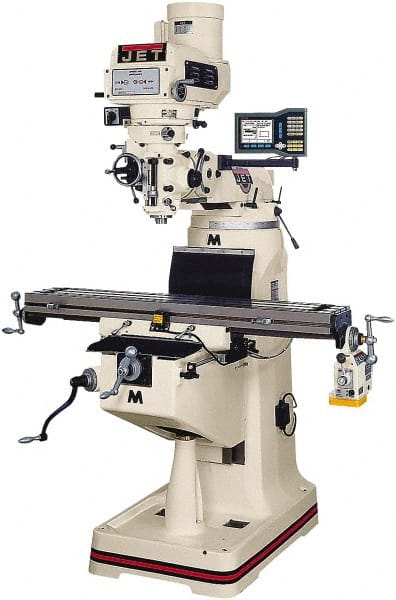

Knee Milling Machine: 4.5″, 3 hp, Variable Speed Pulley Control, 3 Phase 60 to 4,200 RPM, R8 Spindle Taper
Item #: 72215221
Brand: Jet
Model #: 690408
Product Specifications
| Minimum Spindle Speed | 60 RPM |
| Maximum Spindle Speed | 4200 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90 ? |
| Right-Hand Head Tilt (Degrees) | 90 |
| Right-hand Head Tilt | 90 ? |
| Cross Travel (Decimal Inch) | 12.0000 |
| Cross Travel | 12 in |
| Longitudinal Travel | 34 in |
| Longitudinal Travel (Decimal Inch) | 34.0000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Knee Travel | 16 in |
| Quill Diameter (Inch) | 3-3/8 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Horsepower | 3.00 |
| Voltage | 460; 230 |
| Table Load Capacity (Lb.) | 660.00 |
| Table Length (Inch) | 42 |
| Table Width (Inch) | 9 |
| Ram Travel Length (Inch) | 14-1/2 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Inch) | 4-1/2 |
| Number Of T-slots | 2 |
| Overall Height (Decimal Inch) | 85.0000 |
| Overall Height (Inch) | 85 |
| Overall Length (Inch) | 63 |
| Overall Length (Decimal Inch) | 63.0000 |
| Overall Depth (Inch) | 65-1/2 |
| Overall Depth (Inch) | 65.5000 |
| Includes | Tolerance Test Sheet |
| Maximum Spindle To Column Distance (Decimal Inch) | 4.5000 in |
| Maximum Spindle To Column Distance (Inch) | 4-1/2 |
 | |
| MSC Part # | 72215221 |
| Mfr Part # | 690408 |
| Country of OriginCountry of Origin is subject to change | Taiwan |
