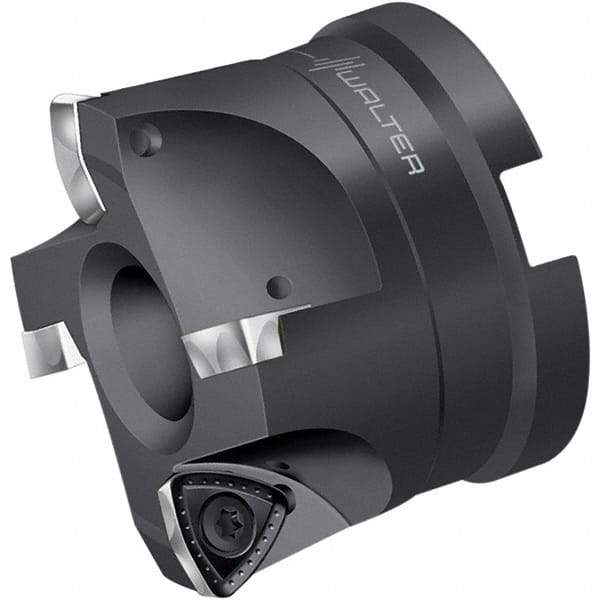

Walter - 63.5mm Cut Diam, 19.05mm Arbor Hole, 1.5mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 5 Inserts, P 2633.- R14 Insert, Right Hand Cut, Through Coolant, Series F2330
Item #: 71974968
Brand: Walter
Model #: 5095403
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | P 2633.- R14 |
| Series | F2330 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | F2330 |
| Maximum Body Diameter (Decimal Inch) | 2.5000 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 2.5000 |
| Complete Insert Compatibility | P26335R14; P26337R14; P26339R14; P26379-R14 |
