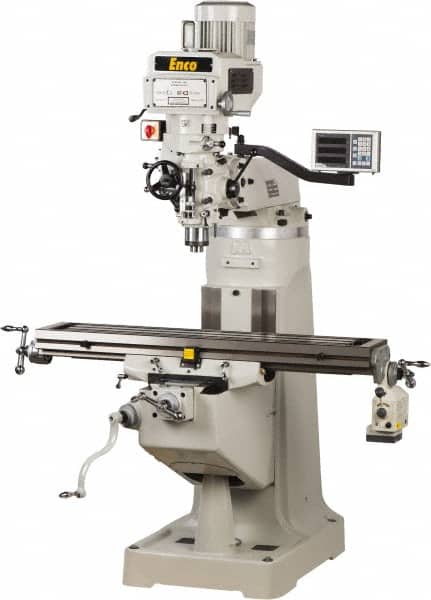

Value Collection - 9 x 49" 2 hp 220V Variable Speed Pulley Control 3 Phase Knee Milling Machine
Item #: 71485684
Brand: Value Collection
Model #: 100-1599 XPF-F2
Product Specifications
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Horsepower (HP) | 2.00 |
| Phase | 3 |
| Voltage | 220 |
| Longitudinal Travel (Decimal Inch) | 35.0000 |
| Cross Travel (Decimal Inch) | 13.5000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Minimum Spindle Speed (RPM) | 60.00 |
| Maximum Spindle Speed (RPM) | 4200.00 |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Inch) | 5 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Minimum Spindle to Table Distance (Inch) | 0; 5-1/2 |
| Maximum Spindle to Table Distance (Inch) | 18; 20 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (Decimal Inch) | 14.5000 |
| Ram Turret Swivel (Degrees) | 360.00 |
| Overall Length (Inch) | 74 |
| Overall Height (Inch) | 85 |
| Overall Depth (Inch) | 71 |
