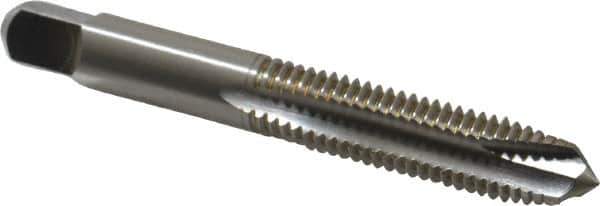

Cleveland - M10x1.50 Metric Coarse, 3 Flute, Bright Finish, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 2-15/16" OAL, 31.75mm Thread Length, 6H Class of Fit, Series 1011
Item #: 71356067
Brand: Cleveland
Model #: C57189
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M10x1.50 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D6 |
| Finish/Coating | Bright |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.9380 |
| Oversize | No |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 1.2500 |
| Thread Length (mm) | 31.75 |
| Series/List | 1011 |
| Material Application | Alloy Steel; Aluminum; Carbon Steel |
